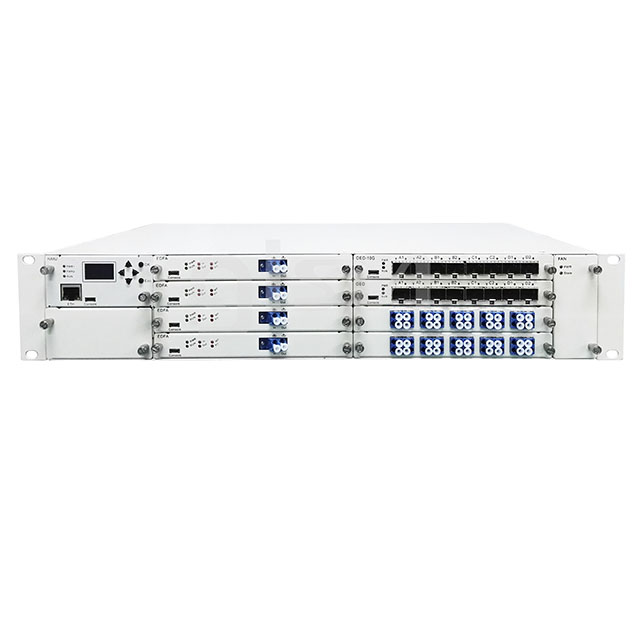

Optical Communication Integrated Platform 2U Chassis, Supports up to 8 Function Card Slots with Accessories
- Models
- OTDR
- 1x16 OSW
- OPD
- LSU
- 2U Chassis
- Solutions
- Access & Aggregation
- Metro Networks
OTS3000-MSTP is a kind of optical communication integrated platform, GLsun independently researches, develops, and designs it. Its high density and high integration enable the system to provide rich functions and flexible configurations. Otherwise, it provides LCD GUI user interface and rich network management functions. OTS3000 adopts the standard 19 inches chassis design, with the size of 1U, 2U,4U, etc. The redundant power and pluggable design support dual AC, dual DC, and AC&DC power supply modes. This equipment provides 20 pieces functional plug-in module slots maximum, supports two kinds of NMU and 50W, 100W, 200W power module, and supports DWDM, CWDM, OADM, OTU, OEO, EDFA, SOA, OSW, OPD, LSU, VOA, and TMUX functional plug-in module, thus it is widely used in optical transmission, optical protection, fiber cable monitoring, and data safety field.
| Chassis Type | 2U | Slot Count | 8-slot |
| Device Power Max | 100W max | Power Supply Mode | Dual AC power |
| Dimension (WxDxH) | 482.6×300×89 mm | NMU Type | Normal NMU |
| Relative Humidity | 5~ 95% | Operating Temperature | -5～+55℃ |
| Storage Temperature | -20~+70℃ |
