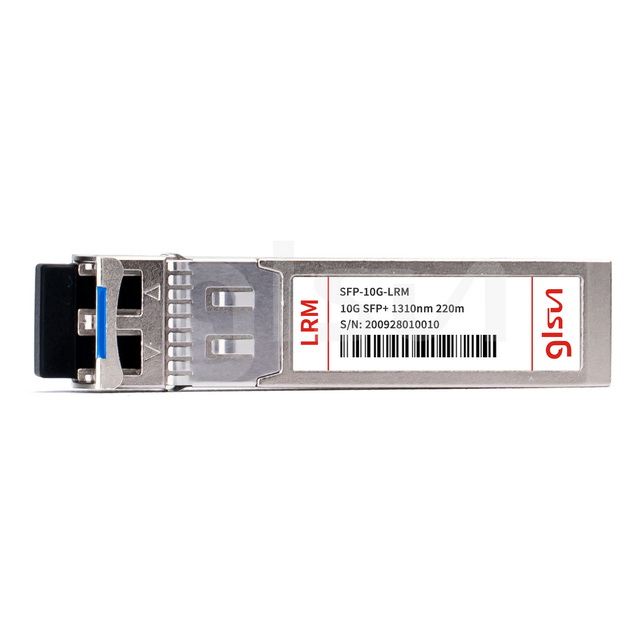

SFP-10G-LRM Cisco Compatible, 10GBASE-LRM SFP+ 1310nm 220m DOM LC MMF/SMF Fiber Optical Transceiver Module
- Transceiver Type
- SFP-10G-SR | 300m
- DS-SFP-FC8G-SW | 150m
- SFP-10G-LRM | 220m
- SFP-10G-LRM-31 | 2km
- SFP-10G-LR | 10km
- DS-SFP-FC8G-LW | 10km
- SFP-10G-LR-31 | 20km
- DS-SFP-FC8G-ER | 40km
- SFP-10G-ER-55 | 40km
- SFP-10G-ER-31 | 40km
- SFP-10G-ZR | 80km
GLsun 10Gb/s SFP+ 1310nm 220m Optical Transceiver is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP-10G-LRM converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high-speed 10Gb/s electrical interface is fully compliant with SFI specifications. The high-performance 1310nm FP transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 220m links on MMF(300m links on SMF).
The SFP+ module is compliant with SFF-8431, SFF-8432, and IEEE 802.3aq 10GBASE-LRM. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades, and low EMI emission.
| Compatible | Cisco | Form Factor | SFP+ | ||
| Max Data Rate | 10Gbps | Wavelength | 1310nm | ||
| Max Cable Distance | 220m on MMF, 300m on SMF | Connector | Duplex LC | ||
| Transmitter Type | 1310nm FP | Extinction Ratio | 4dB | ||
| Media | MMF/SMF | Power Consumption | <1W | ||
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial) |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
Questions and AnswersAsk a Question
Customer's Reviews
- Most Relevant
- Ayden ****
-
Good quality and fit2024-02-18
- Dylan ****
-
They are a very impressive supplier. I received my optics products, working as expected.2022-07-01
- Ajay ****
-
Excellent product all the time.
- Everett ****
-
Solid, good workmanship with these transceivers supporting both MMF and SMF
