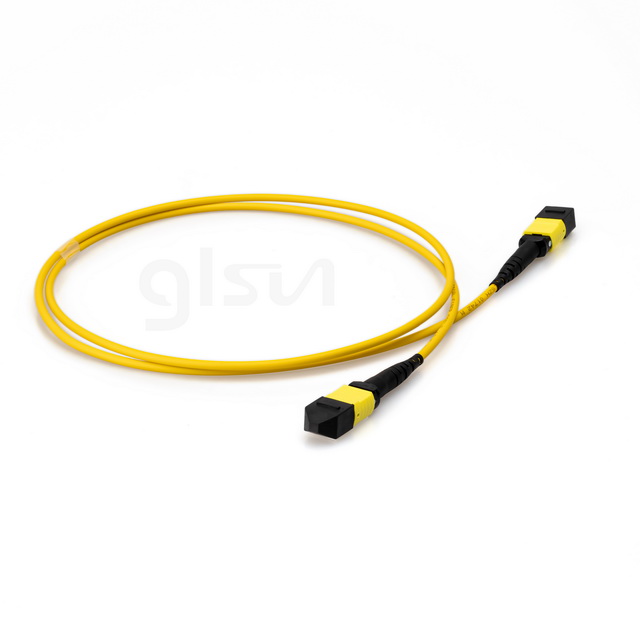

2m Fiber Optic Elite Trunk Cable MTP® Female OS2 9/125 Single Mode 12 Fibers Type B Plenum, Yellow

#241011
36 Sold 0 Reviews 0 Questions
53.00
PN: SM-12F-MTP-F-B-2M-J01
Fiber Count
12 Fibers
Length
1m
2m
3m
5m
10m
Polarity Type
Type B
Ship From China
382 in stock
Add to Cart
2m MTP Female 12 Fibers OS2 Single Mode Elite Trunk Cable
2m Fiber Optic Elite Trunk Cable MTP® Female OS2 9/125 Single Mode 12 Fibers Type B Plenum, Yellow #241011
36 Sold 0 Reviews 0 Questions
Add to Cart
53.00

Connect Type MTP female to MTP UPC Fiber Mode OS2
Wavelength 1310/1550nm Insertion Loss Typical≤0.7dB; Min≤0.35dB
Return Loss MTP≥60 Attenuation at 850 nm ≤0.35 dB/km
Attenuation at 1300nm ≤0.25 dB/km Fiber Cores 12
Cable Diameter 3.0mm Operating Temperature -40 ~+75℃
Storage Temperature -40~+85°C
Quality Certifications
Quality Testing

End Face Polishing

End Face Inspecting

Parameter Testing

Performance Testing

Production Workshop

Download

os2-sm-12-fiber-mtp-female-to-mtp-female-2m-fiber-optic-patch-cable-241011.pdf
