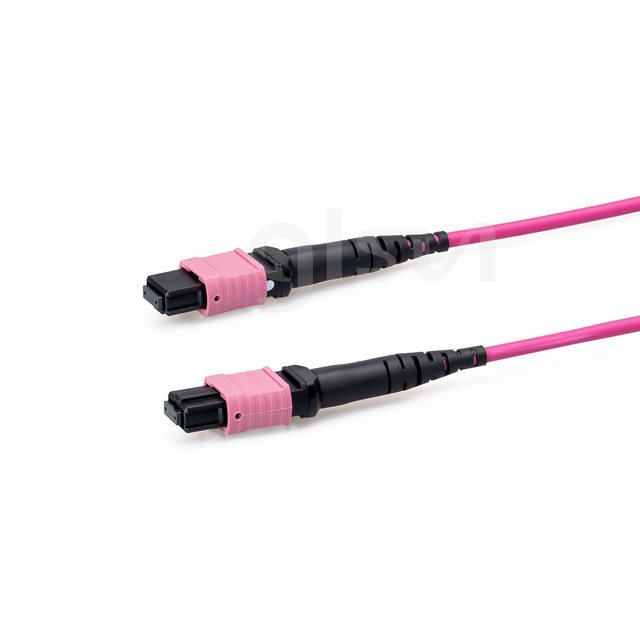

1m Fiber Optic Elite Trunk Cable MTP® Female OM4 50/125 Multimode 24 Fibers Type A Plenum

#242017
87 Sold 2 Reviews 0 Questions
76.00
PN: OM4-24F-MTP-F-A-1M-J01
Fiber Count
12 Fibers
24 Fibers
Length
1m
2m
3m
5m
Polarity Type
Type A
Ship From China
21 in stock
Add to Cart
1m MTP Female 24 Fibers OM4 Multimode Elite Trunk Cable A
1m Fiber Optic Elite Trunk Cable MTP® Female OM4 50/125 Multimode 24 Fibers Type A Plenum #242017
87 Sold 2 Reviews 0 Questions
Add to Cart
76.00

Connect Type MTP female to MTP female Fiber Mode OM4
Wavelength 850/1300nm Insertion Loss Typical≤0.5dB; Min≤0.3dB
Return Loss ≥25dB Attenuation at 850 nm ≤ 3.5dB/km
Attenuation at 1300nm ≤ 3.5dB/km Fiber Cores 24
Cable Diameter 3.0mm Operating Temperature -40 ~+75℃
Storage Temperature -40~+85°C
Quality Certifications
Quality Testing

End Face Polishing

End Face Inspecting

Parameter Testing

Performance Testing

Production Workshop

Download

om4-mm-24-fiber-mtp-female-to-mtp-female-1m-fiber-optic-patch-cable-242017.pdf
