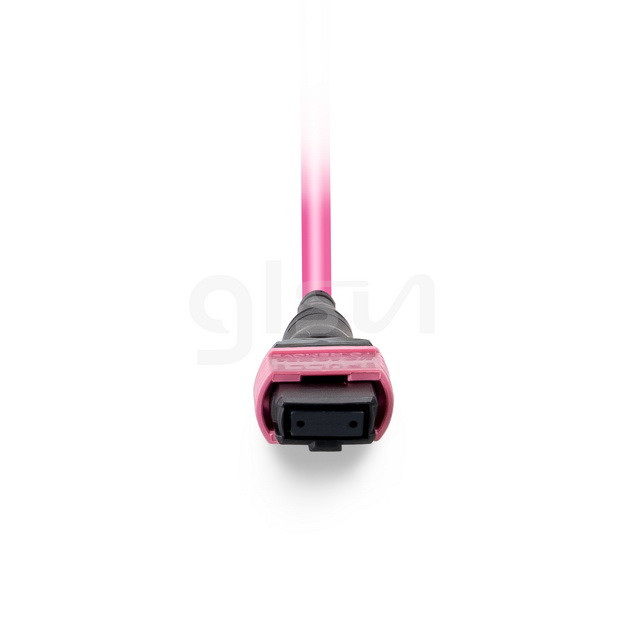

1m Fiber Optic Elite Trunk Cable Magenta OM4 50/125 Multimode MTP® Female 12 Fibers Type B Plenum

#242004
37 Sold 6 Reviews 0 Questions
35.00
PN: OM4-12F-MTP-F-B-1M-J01
Fiber Count
12 Fibers
24 Fibers
Length
1m
1.5m
2m
3m
5m
10m
Polarity Type
Type B
Ship From China
16 in stock
Add to Cart
1m MTP Female 12 Fibers OM4 Multimode Elite Trunk Cable
1m Fiber Optic Elite Trunk Cable Magenta OM4 50/125 Multimode MTP® Female 12 Fibers Type B Plenum #242004
37 Sold 6 Reviews 0 Questions
Add to Cart
35.00

Connect Type MTP female to MTP female Fiber Mode OM4
Wavelength 850/1300nm Insertion Loss Typical≤0.5dB; Min≤0.3dB
Return Loss ≥25dB Attenuation at 850 nm ≤ 3.5dB/km
Attenuation at 1300nm ≤ 3.5dB/km Fiber Cores 12
Cable Diameter 3.0mm Operating Temperature -40 ~+75℃
Storage Temperature -40~+85°C
Quality Certifications
Quality Testing

End Face Polishing

End Face Inspecting

Parameter Testing

Performance Testing

Production Workshop

Download

om4-mm-12-fiber-mtp-female-to-mtp-female-type-b-1m-fiber-patch-cord-242004.pdf
