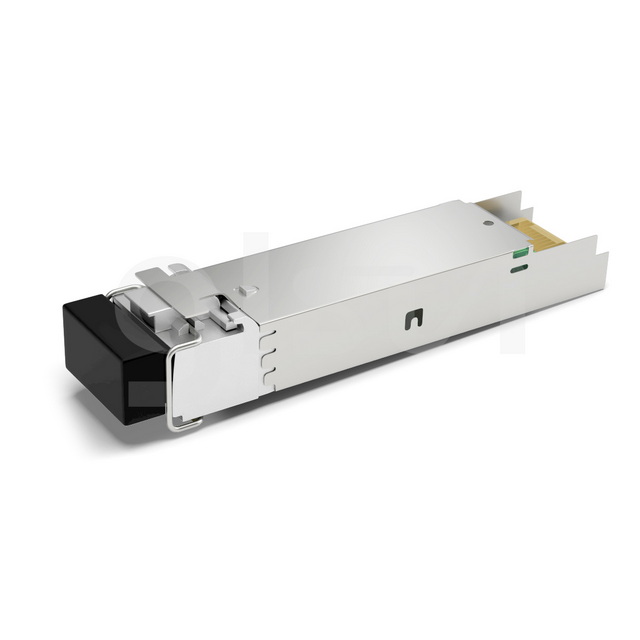

Glsun SFP-1G-BX40U SFP BIDI transceiver modules are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 40km transmission distance with SMF. The 1G sfp bidi transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Compatible | Cisco | Form Factor | SFP | ||
Max Data Rate | 1.25Gbps | Wavelength | 1310nm-TX/1490nm-RX | ||
Max Cable Distance | 40km | Connector | Simplex LC | ||
Transmitter Type | 1310nm DFB | Extinction Ratio | 9dB | ||
Media | SMF | Power Consumption | <0.8W | ||
Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70℃ (Commercial); -40°C to +85℃ (Industrial) |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
