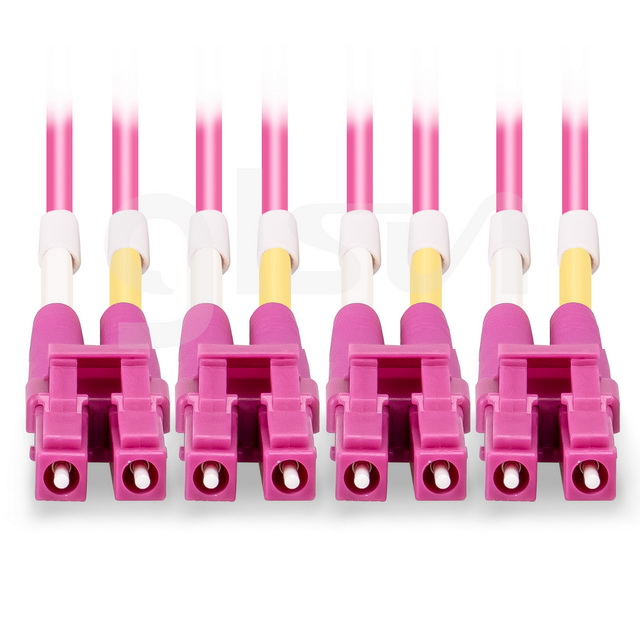

5m Fiber Optic Elite Breakout Cable Magenta MTP® Female to 4 LC UPC OM4 50/125 Multimode Duplex 8 Fibers Type B Plenum

#242011
56 Sold 1 Reviews 0 Questions
52.00
PN: OM4-8F-MTP-LU-5M-J01
Fiber Count
8 Fibers
Length
1m
3m
5m
Ship From China
245 in stock
Add to Cart
5m MTP Female to 4 LC 8 Fibers OM4 Multimode Elite Breakout Cable
5m Fiber Optic Elite Breakout Cable Magenta MTP® Female to 4 LC UPC OM4 50/125 Multimode Duplex 8 Fibers Type B Plenum #242011
56 Sold 1 Reviews 0 Questions
Add to Cart
52.00

ConnectType MTP(MM） Polish Type ConnectType:MTP female to LC UPC
Fiber Mode OM4 Wavelength 850/1300nm
Insertion Loss MTP® ConnectIL Typical≤0.5dB; Min≤0.3dB
LC ConnectIL ≤2.0dB Return Loss MTP≥25，LC≥30
Attenuation at 1310nm
Attenuation at 1550nm Attenuation at 850 nm ≤ 3.5dB/km
Attenuation at 1300nm ≤ 3.5dB/km Fiber Count Fiber Cores : 8
Cable Diameter 3.0mm Operating Temperature -40 ~+75℃
Storage Temperature -40~+85°C
Quality Certifications
Quality Testing

End Face Polishing

End Face Inspecting

Parameter Testing

Performance Testing

Production Workshop

Download

om4-mm-8-fiber-mtp-female-to-lc-upc-5m-fiber-optic-patch-cable-242011.pdf
