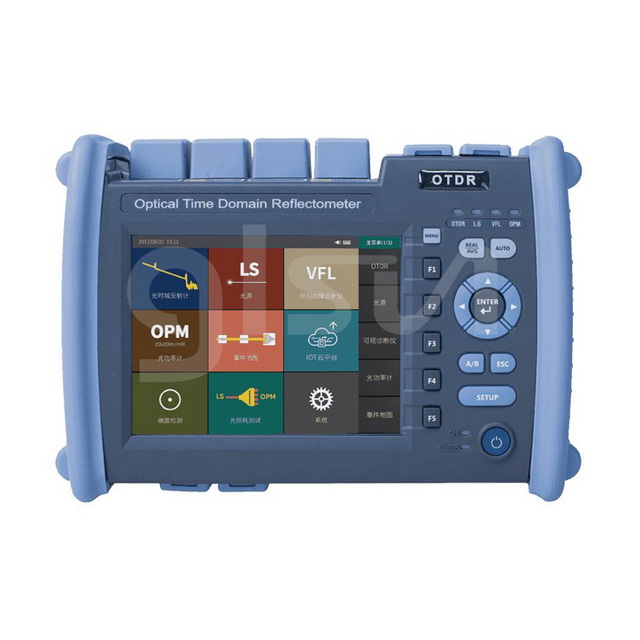

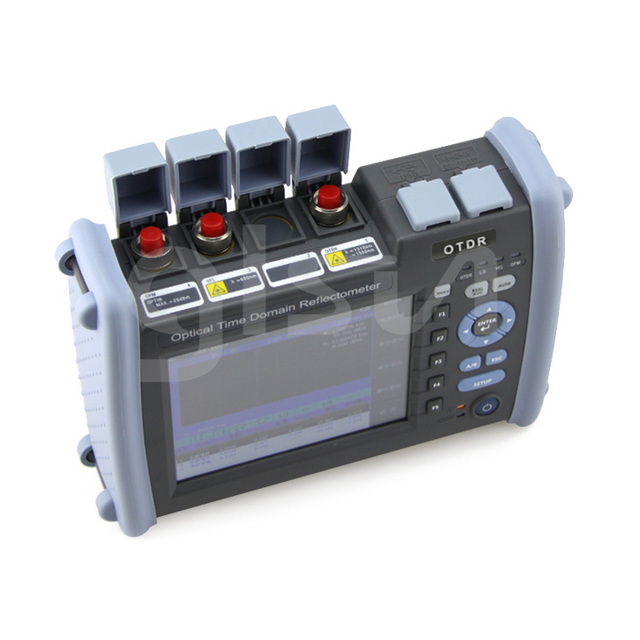

SUN4000 Mini Pro Series Optical Time Domain Reflectometer adopts 4.3 inch capacitive touch screen. It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and “computer level” file management to meet various test requirements in different occasions. OTDR has a maximum dynamic range of 26dB, 8G memory, and can store more than 200000 curves; it is equipped with 4000mAh high-density polymer lithium battery, intelligent power saving management, measuring time of more than 8 hours, and supporting power supply and charging of the power bank.
SUN4000 Series are used to measure the length, loss, connection quality and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineering construction, maintenance and emergency repair test, and production measurement of optical fiber and cable.
|Fiber Type||G.652 Single Mode||Wavelength||1550nm±20nm|
|Dynamic Range||24dB||Test Range||100KM|
|Event Blind Zone||2.5m||ATT Blind Zone||8m|
|Pulse Width||3ns~20us||Connector||FC/UPC(Interchangeable SC, ST)|
|Data Interface||USB Type C||Dimension||173mm*109mm*45mm|
