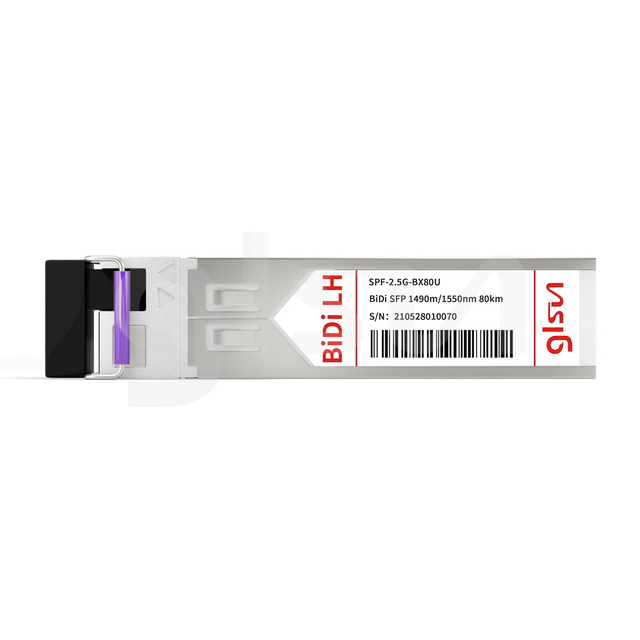

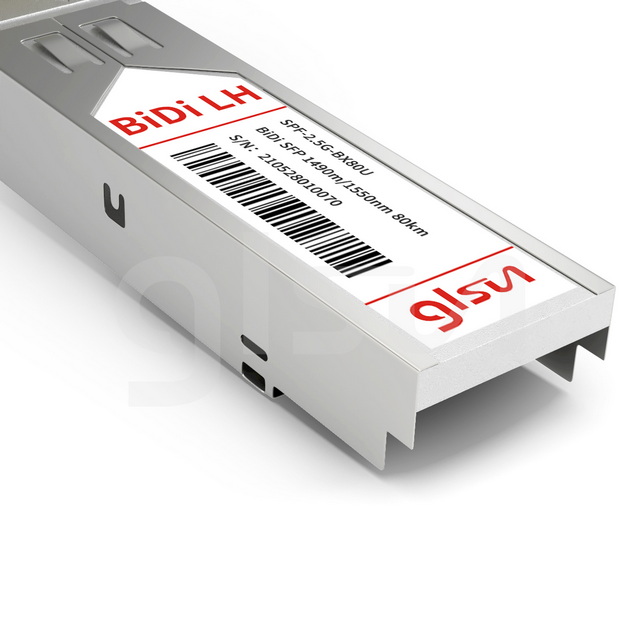

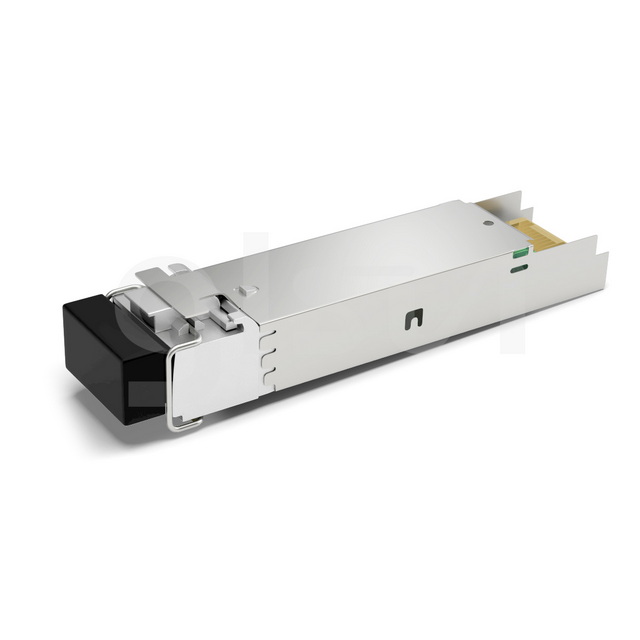

2500BASE-BX BiDi SFP TX1490nm/RX1550nm 80km DOM LC SMF Fiber Optical Transceiver Module
#151068
14 Sold
1 Reviews
0 Questions
23.22 41.79
PN: SPF-2.5G-BX80U-T02
Ship From China
799 in stock
2500BASE-BX BiDi SFP TX1490nm/RX1550nm 80km DOM LC SMF Fiber Optical Transceiver Module #151068
14 Sold
1 Reviews
0 Questions
23.22 41.79

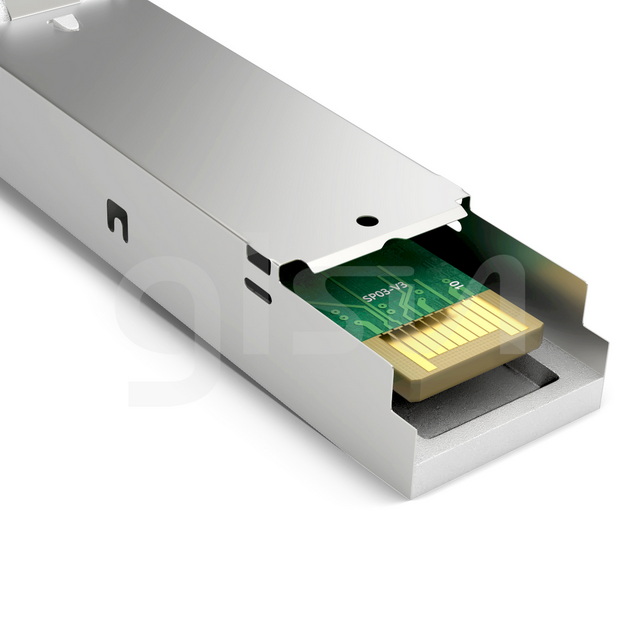

GLsun SPF-2.5G-BX80U, SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.5Gbps/2.125Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedanc e preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
| Form Factor | SFP | Max Data Rate | 2.5Gbps |
| Wavelength | 1490nm-TX/1550nm-RX | Max Cable Distance | 80km |

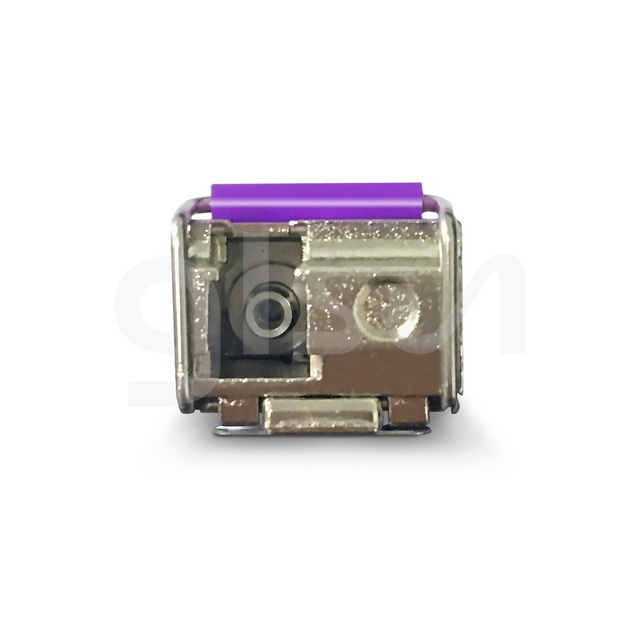

| Connector | Simplex LC | Transmitter Type | 1490nm DFB |
| Extinction Ratio | 9dB | Media | SMF |
| Power Consumption | <1.0W | Power Supply Voltage | 3.3V |
| Operating Case Temperature | 0°C to +70℃ (Commercial); -40°C to +85℃ (Industrial) |
Quality Certifications
Quality Testing
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
Production Workshop
