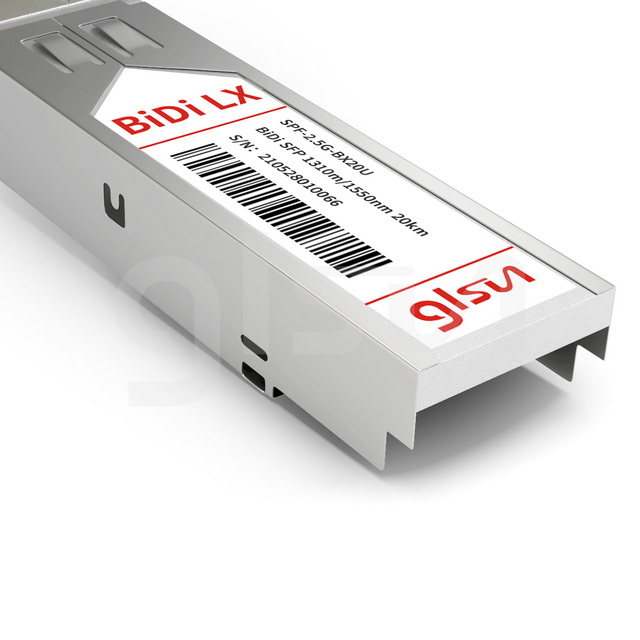

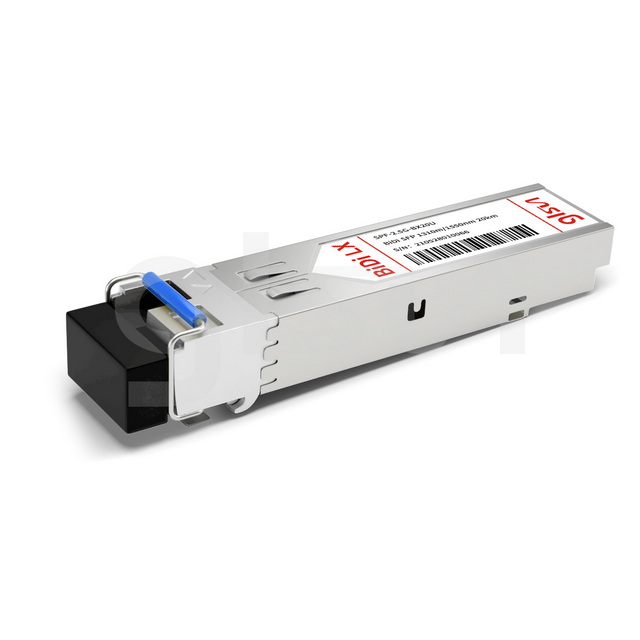

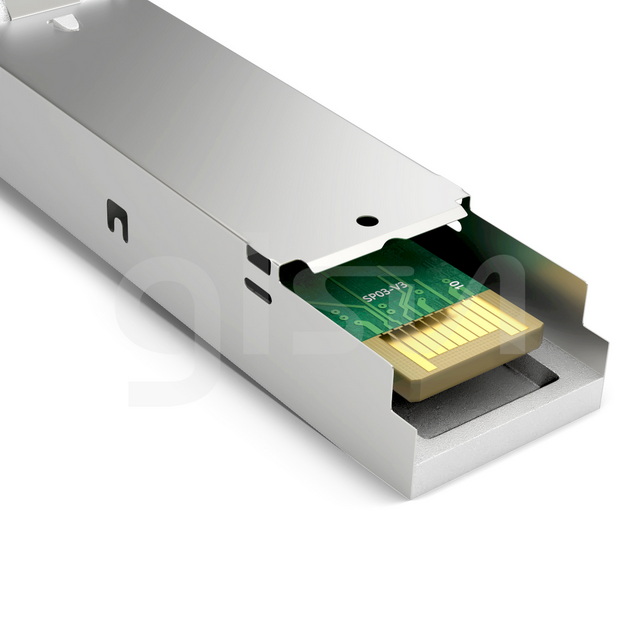

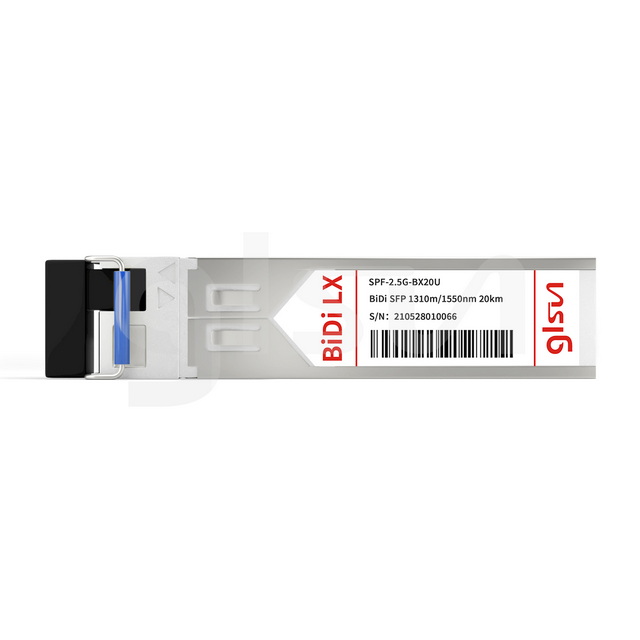

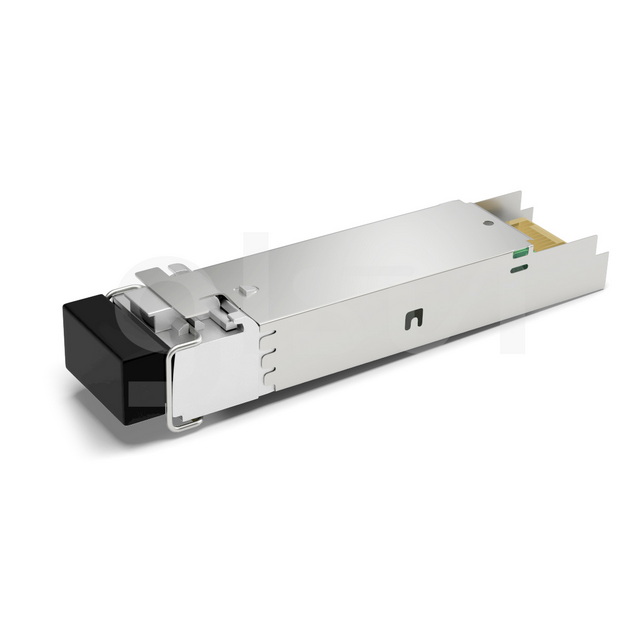

2500BASE-BX BiDi SFP TX1310nm/RX1550nm 20km DOM LC SMF Fiber Optical Transceiver Module

#151064
35 Sold 0 Reviews 0 Questions
7.43 16.72
PN: SPF-2.5G-BX20U-T02
Ship From China
369 in stock
Add to Cart
SPF-2.5G-BX20U TX1310nm/RX1550nm Optical Transceiver Module
2500BASE-BX BiDi SFP TX1310nm/RX1550nm 20km DOM LC SMF Fiber Optical Transceiver Module #151064
35 Sold 0 Reviews 0 Questions
Add to Cart
7.43 16.72

GLsun SPF-2.5G-BX20U, SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.5Gbps/2.125Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Form Factor SFP Max Data Rate 2.5Gbps
Wavelength 1310nm-TX/1550nm-RX Max Cable Distance 20km

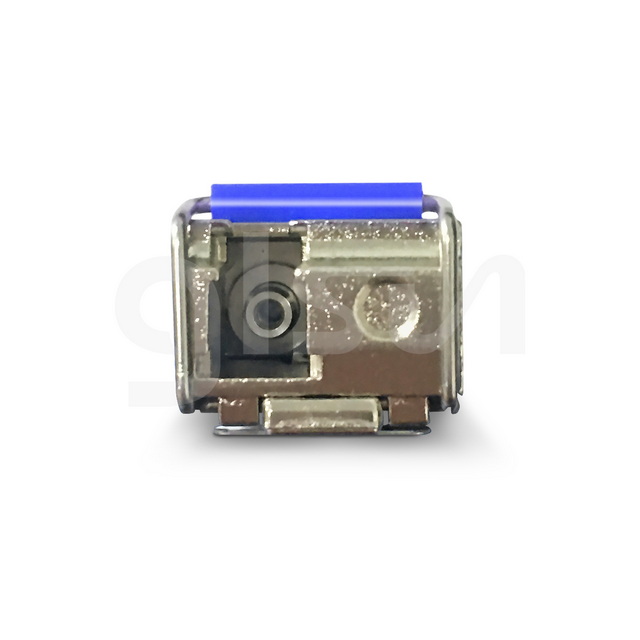

Connector Simplex LC Transmitter Type 1310nm DFB
Extinction Ratio 9dB Media SMF
Power Consumption <0.8W Power Supply Voltage 3.3V
Operating Case Temperature 0°C to +70℃ (Commercial); -40°C to +85℃ (Industrial)
Quality Certifications
Quality Testing

Wavelength Testing

Bit Error Rate Testing

Performance Testing

Final Testing

Production Workshop

Download

spf-2.5g-bx20u-1310nm-1550nm-20km-bidi-fiber-optical-transceiver-151064.pdf
