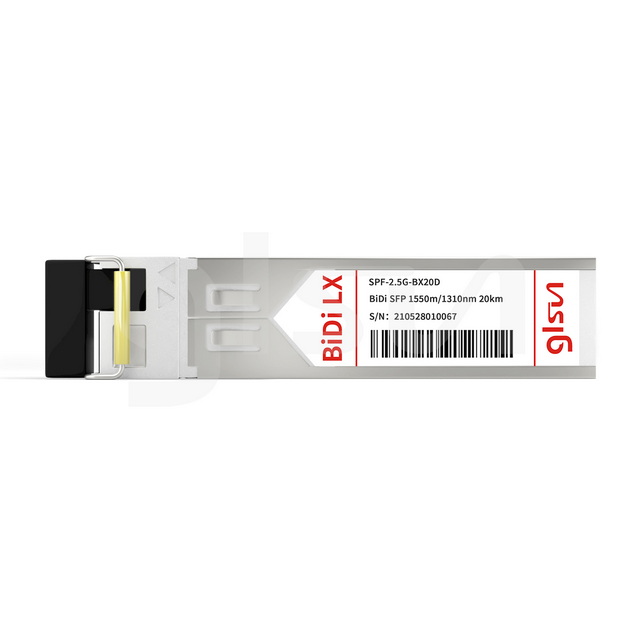

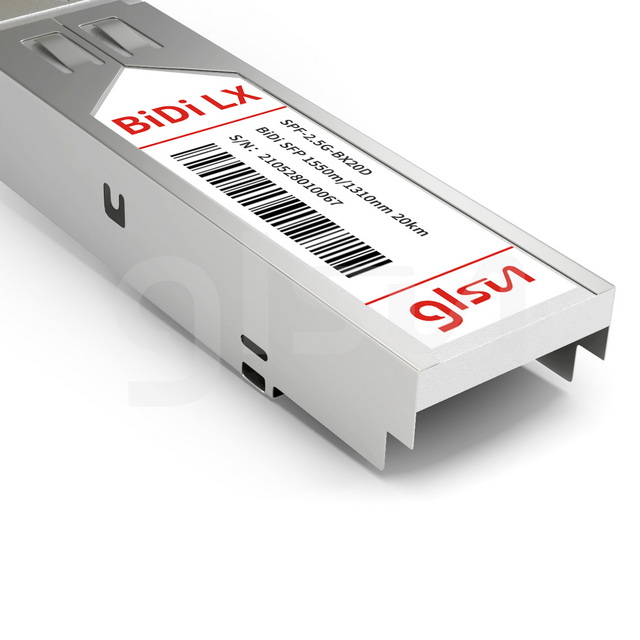

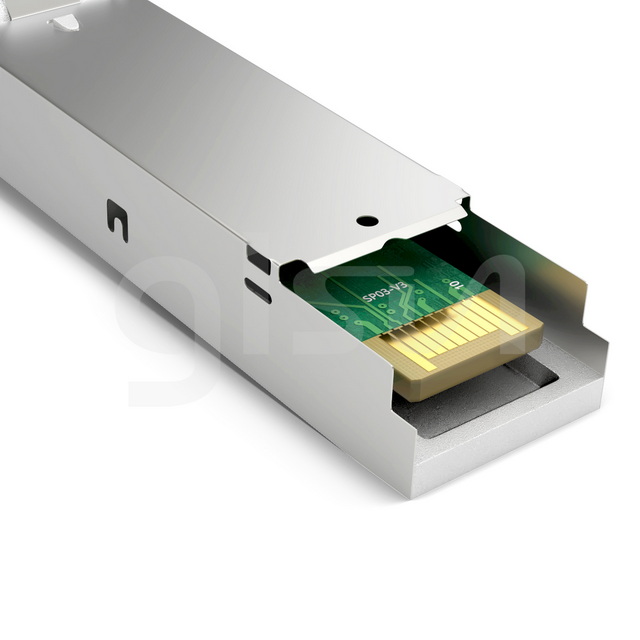

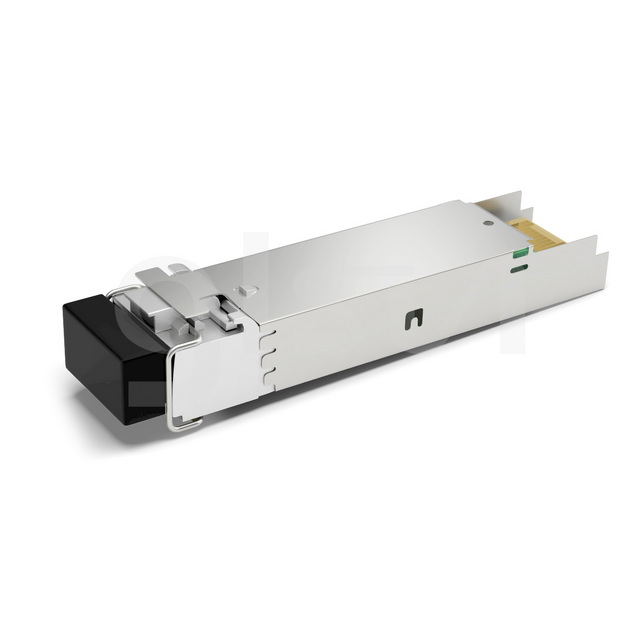

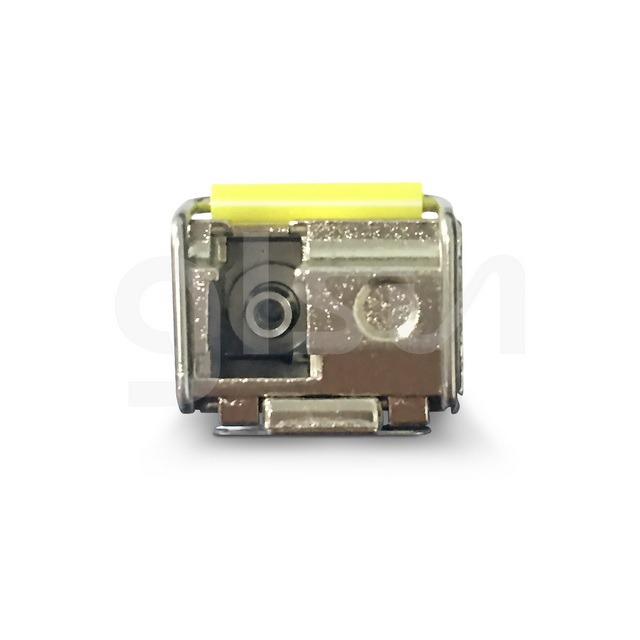

SFP-2.5G-BX20D Optical Transceiver Module SFP 2500BASE-BX10 BiDi TX1550/RX1310nm 20km DOM LC SMF

#151065
86 Sold 0 Reviews 0 Questions
8.00
PN: SPF-2.5G-BX20D-T02
Transceiver Type
SPF-2.5G-BX20U | 20km, 1310m/1550nm
SPF-2.5G-BX20D | 20km, 1550m/1310nm
SPF-2.5G-BX40U | 40km, 1310m/1550nm
SPF-2.5G-BX40D | 40km, 1550m/1310nm
SPF-2.5G-BX80U | 80km, 1490m/1550nm
SPF-2.5G-BX80D | 80km, 1550m/1490nm
Ship From China
429 in stock

GLsun SPF-2.5G-BX20D, SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.5Gbps/2.125Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Form Factor SFP Max Data Rate 2.5Gbps
Wavelength 1550nm-TX/1310nm-RX Max Cable Distance 20km
Connector Simplex LC Transmitter Type 1550nm DFB
Extinction Ratio 9dB Media SMF
Power Consumption <0.8W Power Supply Voltage 3.3V
Operating Case Temperature 0°C to +70℃ (Commercial); -40°C to +85℃ (Industrial)
Quality Certifications
Quality Testing

Wavelength Testing

Bit Error Rate Testing

Performance Testing

Final Testing

Production Workshop
