SFP28-25G-LR-S Cisco Compatible, 25GBASE-LR SFP28 1310nm 10km DOM LC SMF Fiber Optical Transceiver Module

#131002
58 Sold 5 Reviews 0 Questions
28.00 48.00
PN: SFP28-25G-LR-T01
Compatible
Cisco
Transceiver Type

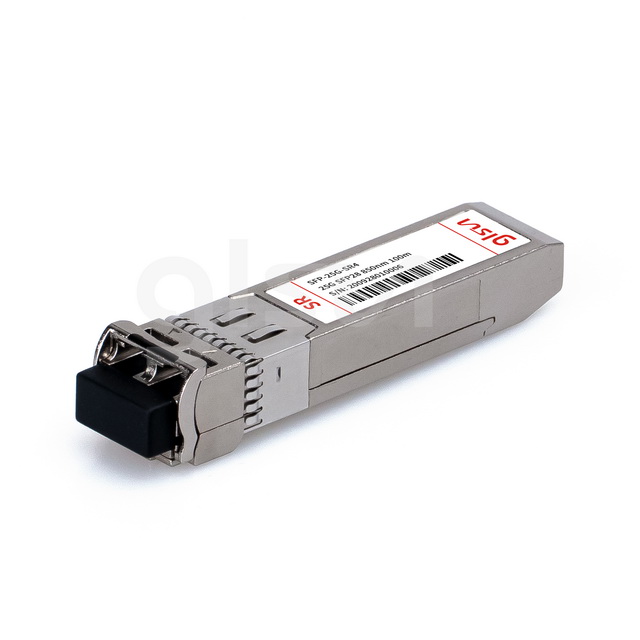

SFP-25G-SR | 100m
SFP-25G-LR | 10km
Ship From China
78 in stock
Add to Cart
SFP28-25G-LR Optical Transceiver Module
SFP28-25G-LR-S Cisco Compatible, 25GBASE-LR SFP28 1310nm 10km DOM LC SMF Fiber Optical Transceiver Module #131002
58 Sold 5 Reviews 0 Questions
Add to Cart
28.00 48.00

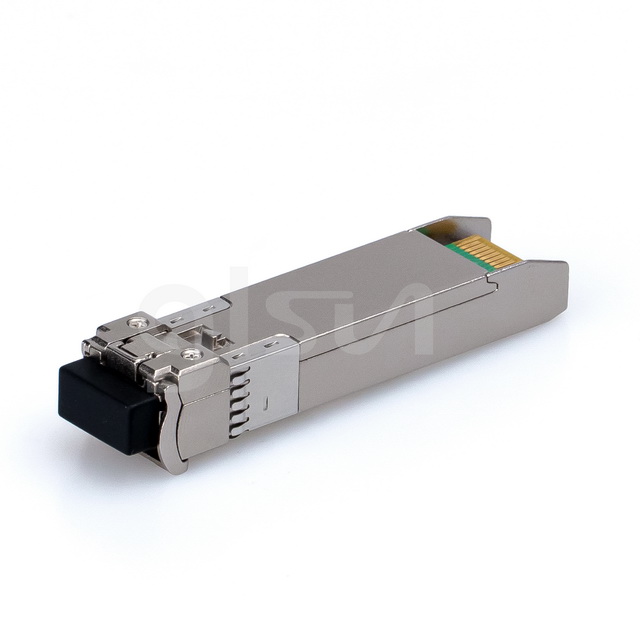

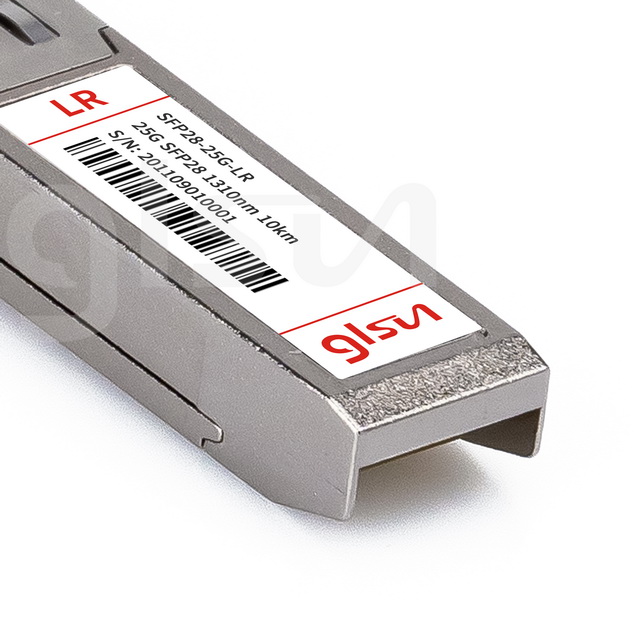

GLsun SFP28-25G-LR single-mode transceiver is SFP28 module duplex optical data communications support up to 25.78Gb/s. It is with the SFP+ 20 pins connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in clock data recovery (CDR). This module is designed for single-mode fiber and operates at a nominal wavelength of 1310nm.

Compatible Cisco Form Factor SFP28
Max Data Rate 25.78Gbps Wavelength 1310nm
Max Cable Distance 10km on 9/125um SMF Connector Duplex LC
Transmitter Type DFB 1310nm Extinction Ratio 3.5dB
Media SMF Power Consumption <1.2W(0~+70℃)<1.5W(-40~+85℃)
Power Supply Voltage 3.3V Operating Case Temperature 0°C to +70℃ (Commercial);-40°C to +85℃ (Industrial)
Quality Certifications
Product Spotlights
Quality Testing

Wavelength Testing

Bit Error Rate Testing

Performance Testing

Final Testing

Production Workshop

Download

sfp28-25g-lr-1310-nm-10km-fiber-optical-transceiver-131002.pdf
