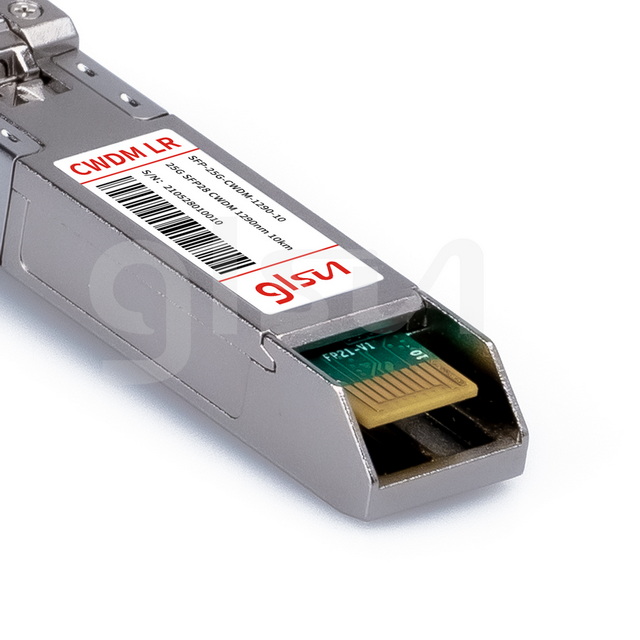

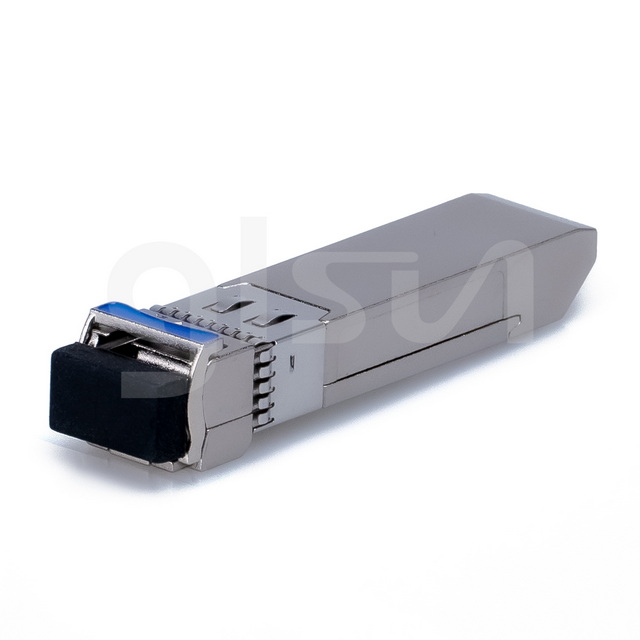

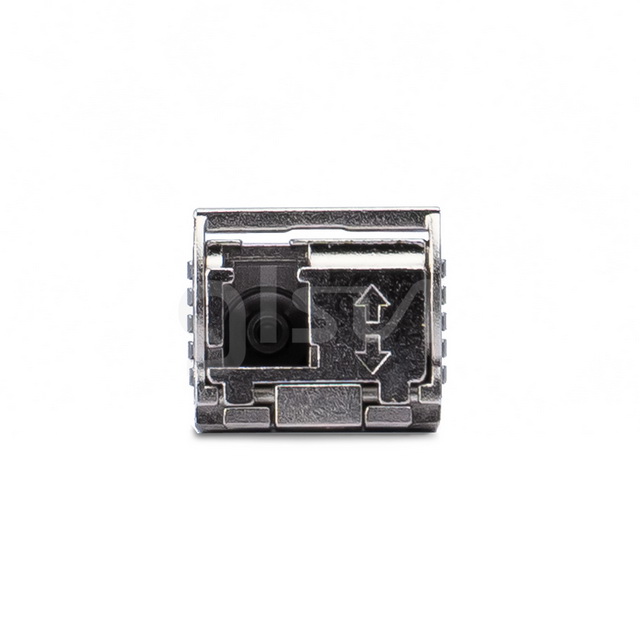

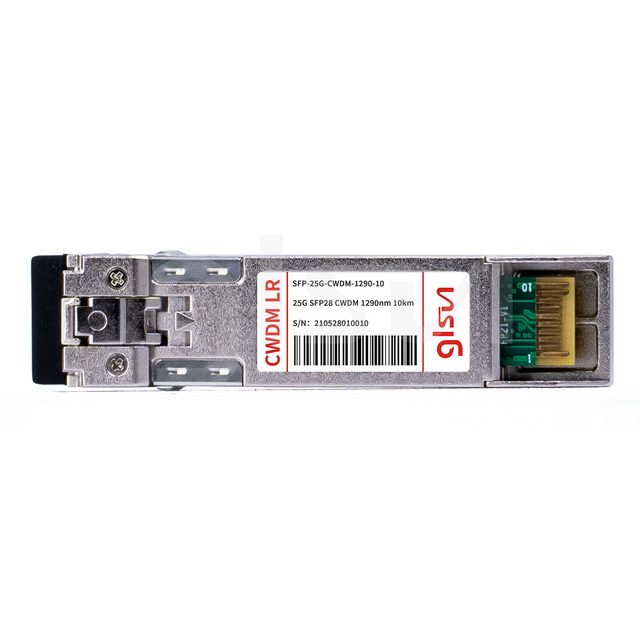

SFP-25G-CWDM-1290-10-T02, 1291nm CWDM 25.78Gbps SFP+ transceiver is designed for use in 25Gb/s data rate over single-mode fiber for link length 10km. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for 25Gb/s single lane optical links. It is with the SFP+ 20-PIN connector to allow hot plug capability. Digital diagnostic functions are available via an 12C. It has built-in clock and data recovery(CDR). This module is designed for single-mode fiber and operates at a nominal wavelength of 1291 CWDM.
Compatible | Cisco | Form Factor | SFP28 | ||
Max Data Rate | 25.78Gb/s | Wavelength | 1290nm | ||
Max Cable Distance | 10km | Connector | Duplex LC | ||
Transmitter Type | DFB CWDM | Extinction Ratio | 3.5dB | ||
Media | SMF | Power Consumption | <1.5W | ||
Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to 70 °C (commercial) |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
