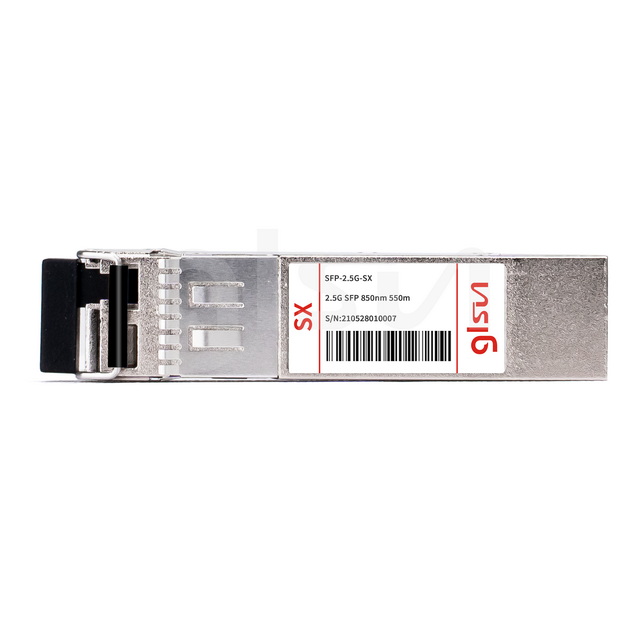

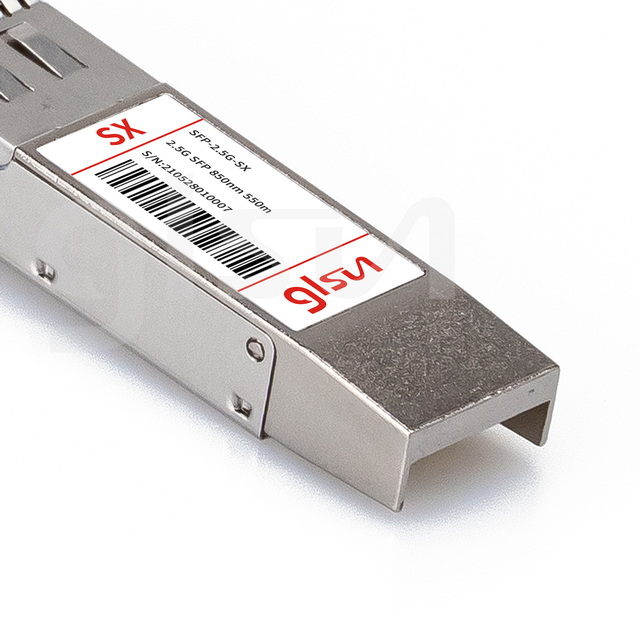

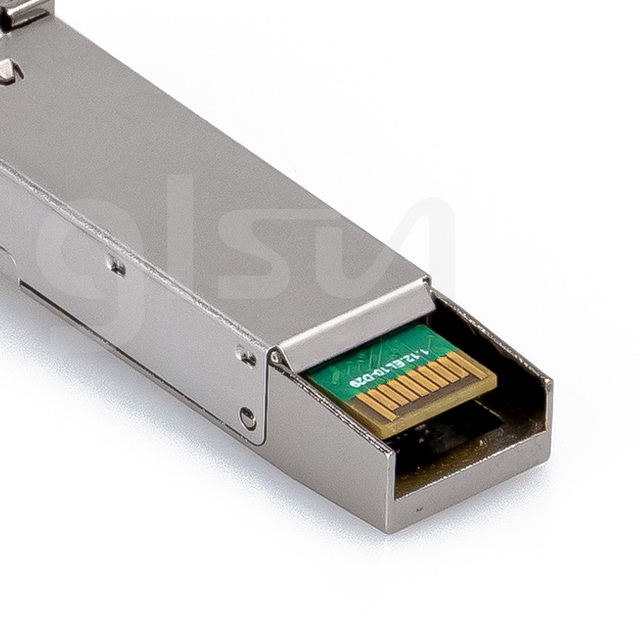

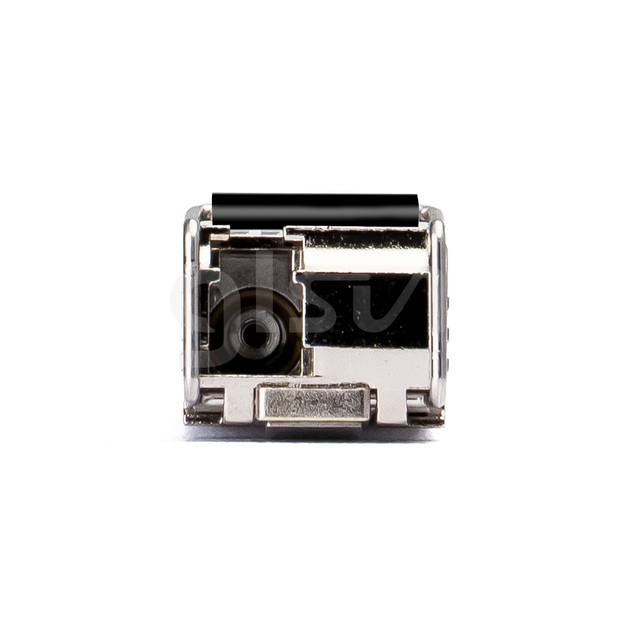

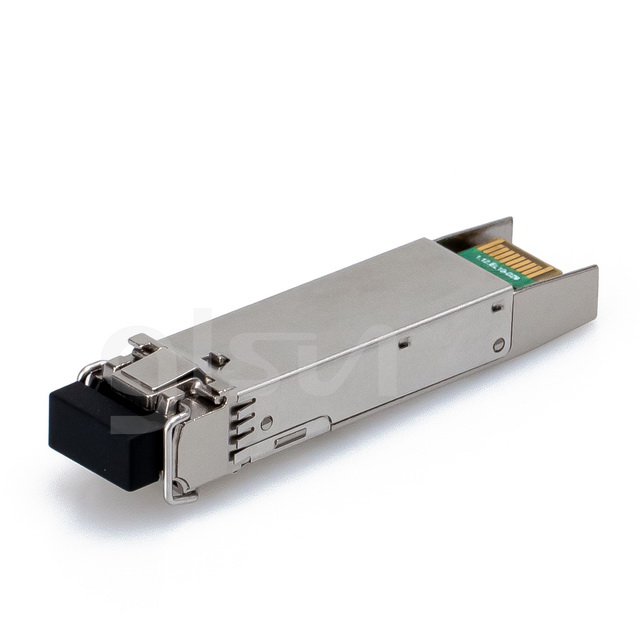

GLsun SFP-2.5G-SX-T02, The SFP transceivers are high performance, cost effective modules supporting data-rate up to 2.67Gbps and 550m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Form Factor | SFP | Max Data Rate | 2.5Gbps | ||
Wavelength | 850nm | Max Cable Distance | 550m | ||
Connector | Duplex LC | Transmitter Type | 850nm VSCEL | ||
Extinction Ratio | 9dB | Media | MMF | ||
Power Consumption | <1.0W | Power Supply Voltage | 3.3V | ||
Commercial Temperature | 0°C to +70℃ | Industrial Temperature | -40°C to +85℃ |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
