SFP-2.5G-LX Optical Transceiver Module, 2500BASE-LX/LH SMF 1310nm 20km DOM LC SFP

#151010
24 Sold 5 Reviews 0 Questions
9.29 15.79
PN: SFP-2.5G-LX-T02
Ship From China
852 in stock
Add to Cart

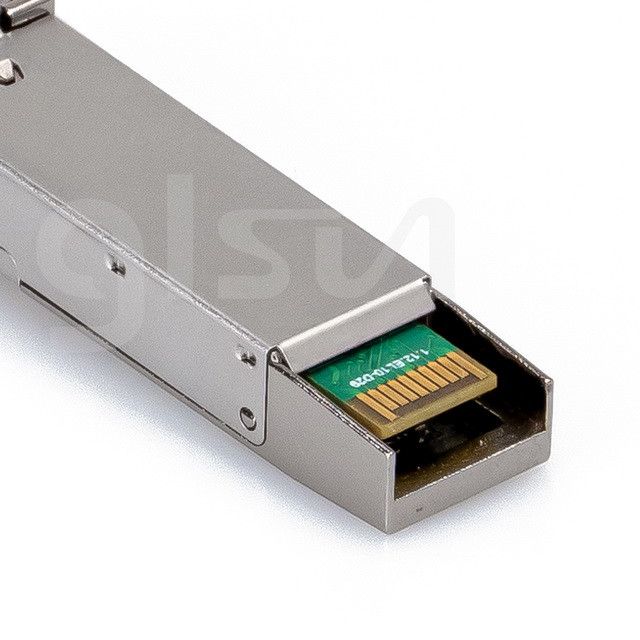

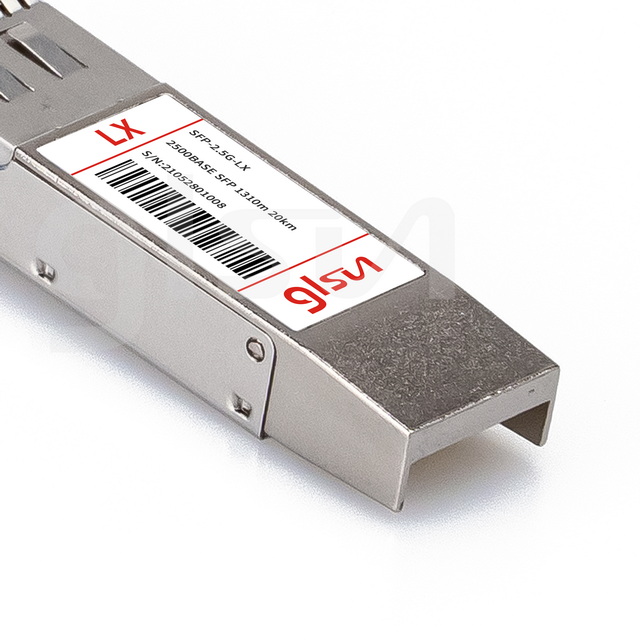

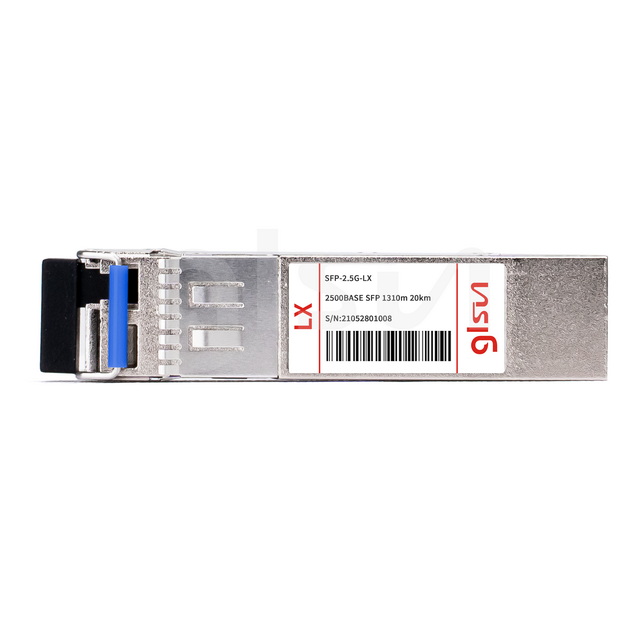

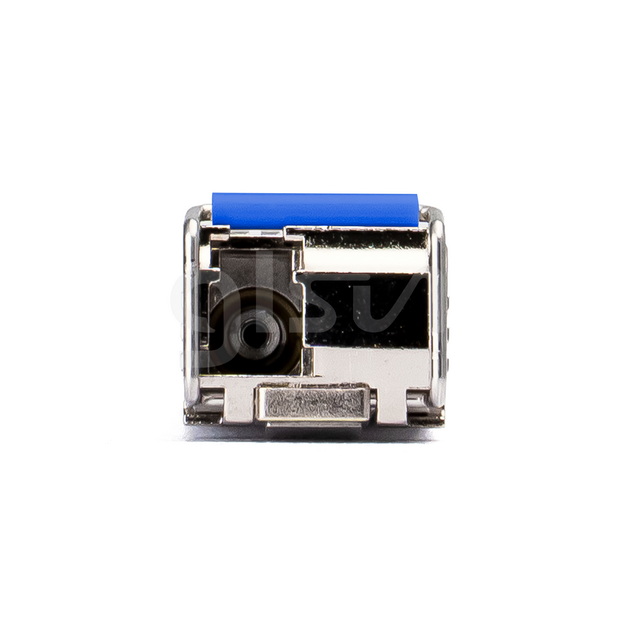

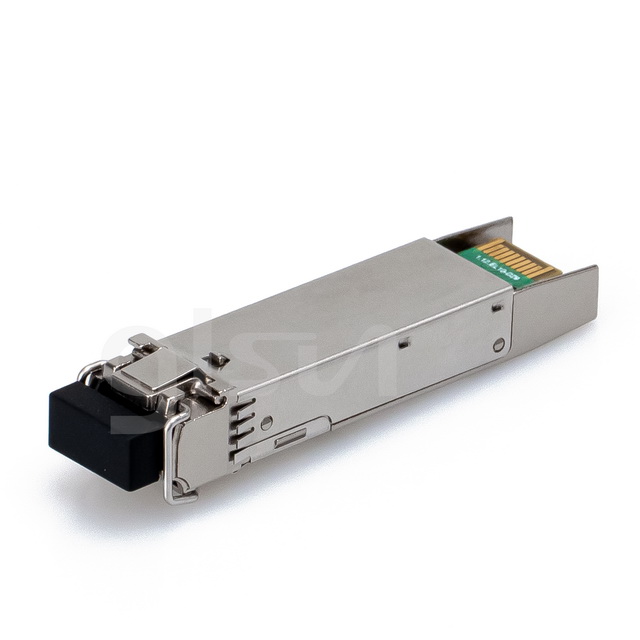

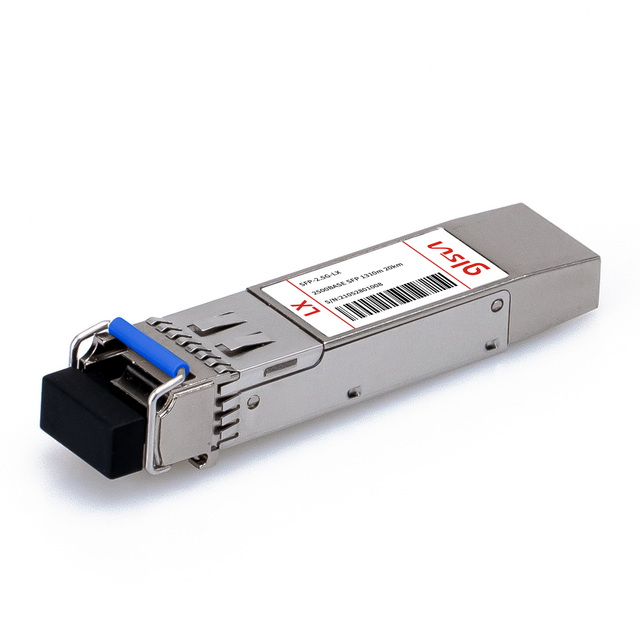

SFP-2.5G-LX 1310nm Optical Transceiver Module
SFP-2.5G-LX Optical Transceiver Module, 2500BASE-LX/LH SMF 1310nm 20km DOM LC SFP #151010
24 Sold 5 Reviews 0 Questions
Add to Cart
9.29 15.79

Glsun SFP-2.5G-LX-T02, SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.5Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Form Factor SFP Max Data Rate 2.5Gbps
Wavelength 1310nm Max Cable Distance 20km
Connector Duplex LC Transmitter Type 1310nm DFB
Extinction Ratio 8.5dB Media SMF
Power Consumption <0.8W Power Supply Voltage 3.3V
Commercial Temperature 0°C to +70℃ Industrial Temperature -40°C to +85℃
Quality Certifications
Quality Testing

Wavelength Testing

Bit Error Rate Testing

Performance Testing

Final Testing

Production Workshop

Download

sfp-2.5g-lx-1310nm-20km-fiber-optical-transceiver-151010.pdf
