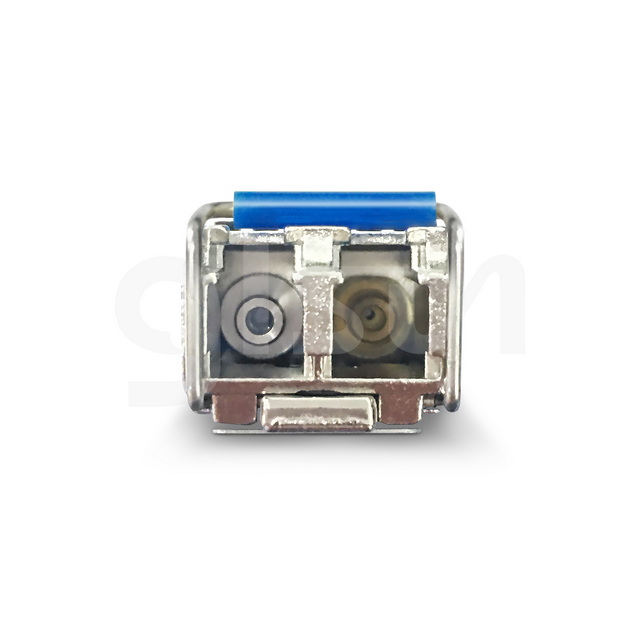

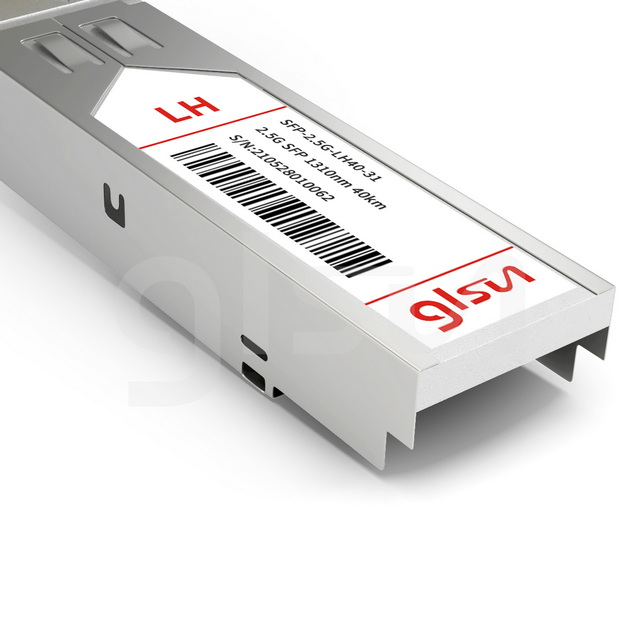

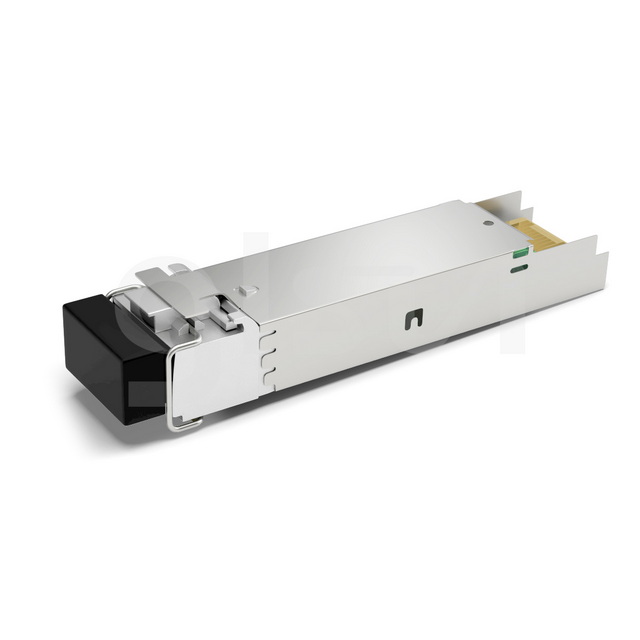

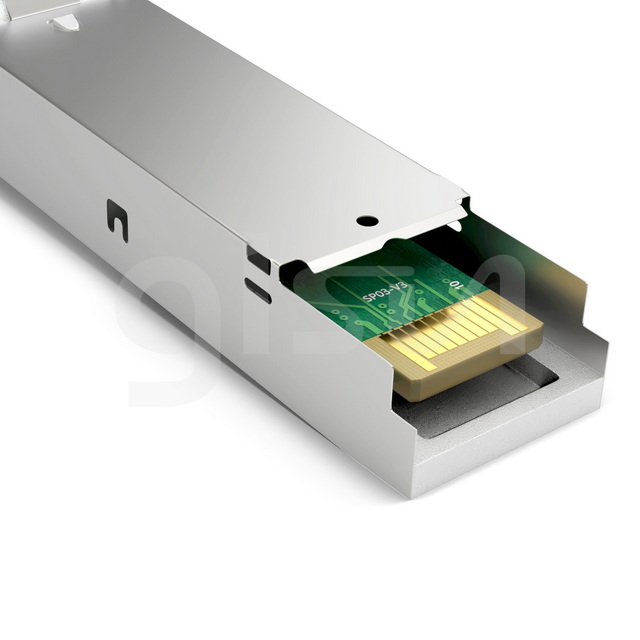

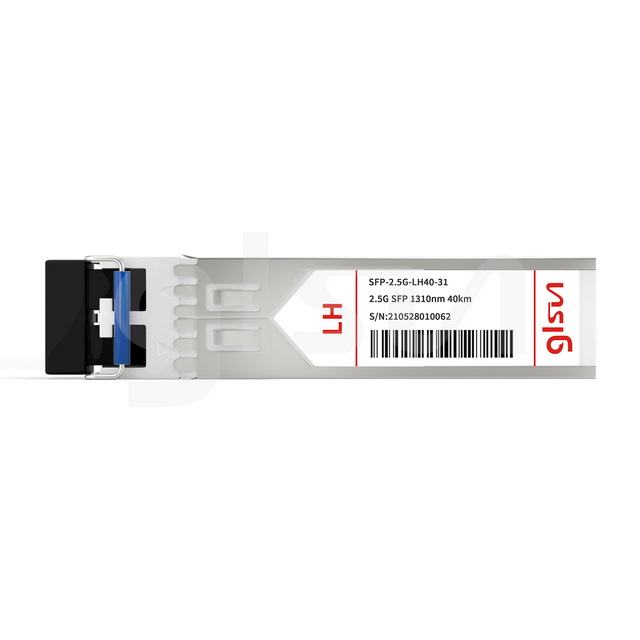

Glsun SFP-2.5G-LH40-31, SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.5Gbps and 40km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Form Factor | SFP | Max Data Rate | 2.5Gbps |
Wavelength | 1310nm | Max Cable Distance | 40km |
Connector | Duplex LC | Transmitter Type | 1310nm DFB |
Extinction Ratio | 9dB | Media | SMF |
Power Consumption | <1.0W | Power Supply Voltage | 3.3V |
Operating Case Temperature | 0°C to +70℃ (Commercial); -40°C to +85℃ (Industrial) |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
