SFP-2.5G-CWDM-1450-40 Optical Transceiver Module 2500BASE-CWDM SFP 1450nm 40km DOM LC SMF
#151079
11 Sold
1 Reviews
0 Questions
24.15 37.15
PN: SFP-2.5G-CWDM-1450-40-T02
Ship From China
866 in stock
SFP-2.5G-CWDM-1450-40 Optical Transceiver Module 2500BASE-CWDM SFP 1450nm 40km DOM LC SMF #151079
11 Sold
1 Reviews
0 Questions
24.15 37.15
GLsun SFP-2.5G-CWDM-1450-40, SFP transceivers are high performance, cost effective modules supporting data-rate of 2.5Gb/s and 40km transmission distance with SMF. The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
| Form Factor | SFP | Max Data Rate | 2.5Gbps |
| Wavelength | 1450nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Transmitter Type | CWDM DFB |
| Extinction Ratio | 9dB | Media | SMF |
| Power Consumption | <0.8W | Power Supply Voltage | 3.3V |
| Operating Case Temperature | 0°C to +70℃ (Commercial); -40°C to +85℃ (Industrial) |
Quality Certifications
Quality Testing
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing

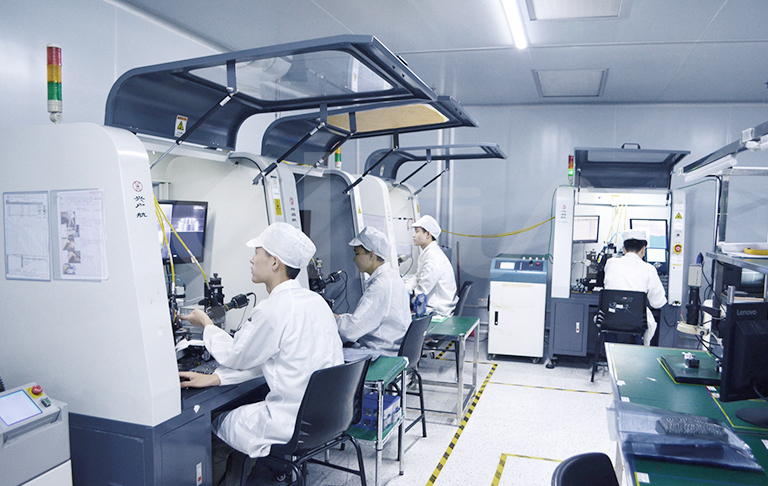

Production Workshop
