SFP-1G-CWDM-1490-40 Cisco Compatible, 1000BASE-CWDM SFP 1490nm 40km DOM LC SMF Fiber Optical Transceiver Module

#151034
10 Sold 1 Reviews 0 Questions
21.00 38.00
PN: SFP-1G-CWDM-1490-40-T02
Compatible
Cisco
Transceiver Type
1270nm
1290nm
1310nm
1330nm
1350nm
1370nm
1390nm
1410nm
1430nm
1450nm
1470nm
1490nm
1510nm
1530nm
1550nm
1570nm
1590nm
1610nm
Distance
40km
80km
Ship From China
649 in stock

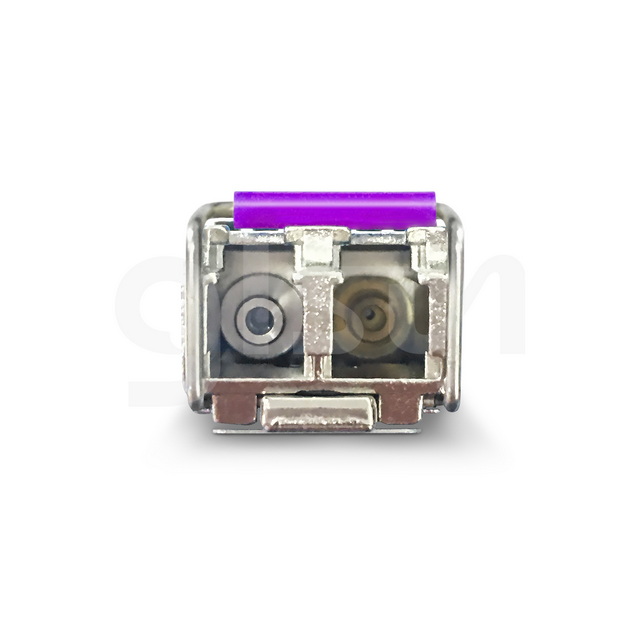

SFP-1G-CWDM-1490-40 Optical Transceiver Module
SFP-1G-CWDM-1490-40 Cisco Compatible, 1000BASE-CWDM SFP 1490nm 40km DOM LC SMF Fiber Optical Transceiver Module #151034
10 Sold 1 Reviews 0 Questions
21.00 38.00

Glsun SFP-1G-CWDM-1490-40, SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gb/s and 40km transmission distance with SMF. The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Compatible Cisco Form Factor SFP
Max Data Rate 1.25Gbps Wavelength 1490nm
Max Cable Distance 40km Connector Duplex LC
Transmitter Type CWDM DFB Extinction Ratio 9dB
Media SMF Power Consumption <0.8W
Power Supply Voltage 3.3V Operating Case Temperature 0°C to +70℃ (Commercial); -40°C to +85℃ (Industrial)
Quality Certifications
Quality Testing

Wavelength Testing

Bit Error Rate Testing

Performance Testing

Final Testing

Production Workshop
