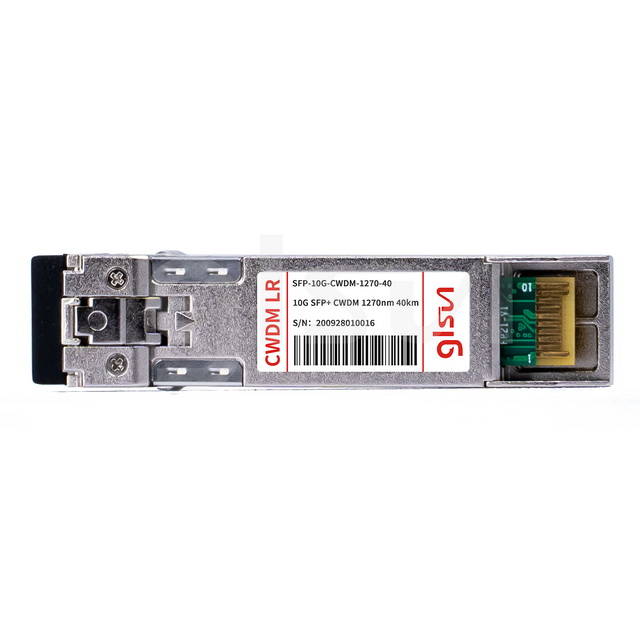

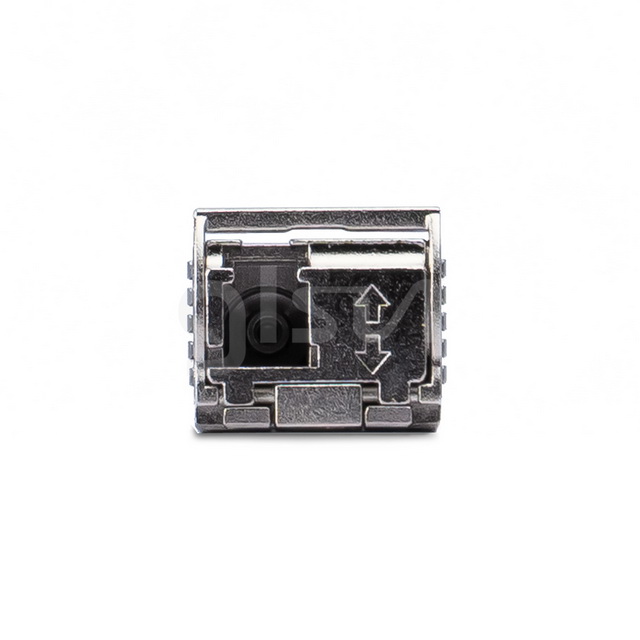

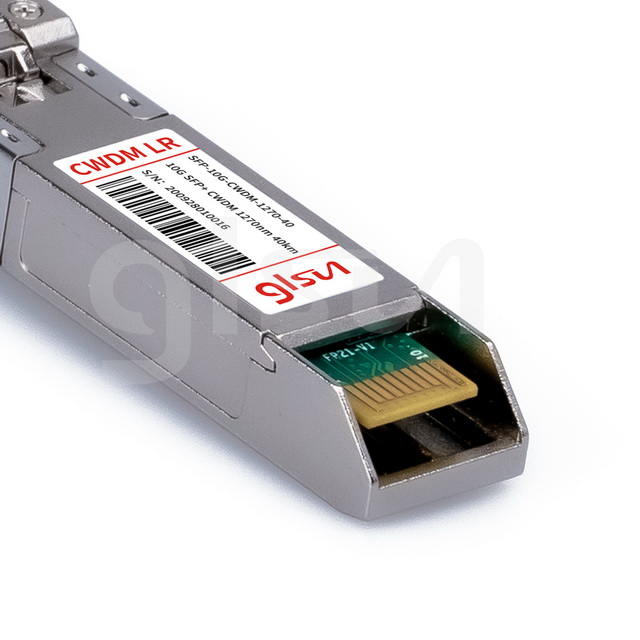

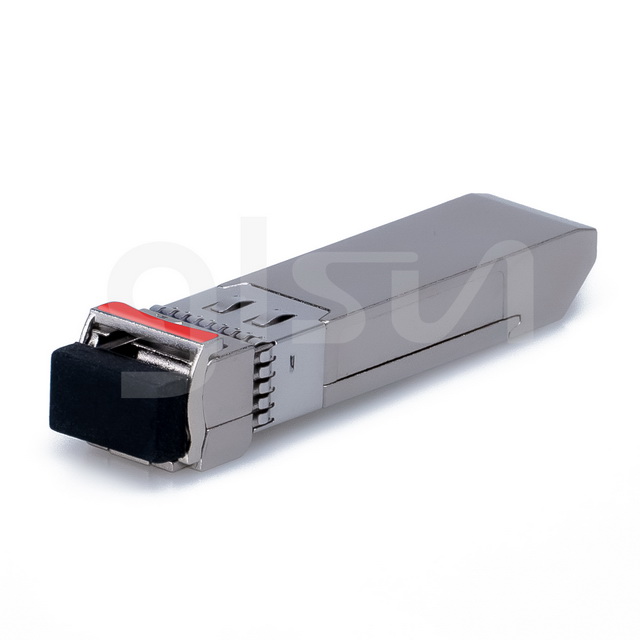

GLsun CWDM DFB 10Gbps SFP+ transceiver module is designed to transmit and receive optical data over single mode optical fiber for link length of 40km. This transceiver consists of two sections. The transmitter section incorporates a CWDM DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Compatible | Cisco | Form Factor | SFP+ | ||
Max Data Rate | 10Gbps | Wavelength | 1270nm~1330nm | ||
Max Cable Distance | 40km | Connector | Duplex LC | ||
Transmitter Type | CWDM DFB | Extinction Ratio | 5dB | ||
Media | SMF | Power Consumption | < 1W | ||
Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70℃ (Commercial);-40°C to +85℃ (Industrial) |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
