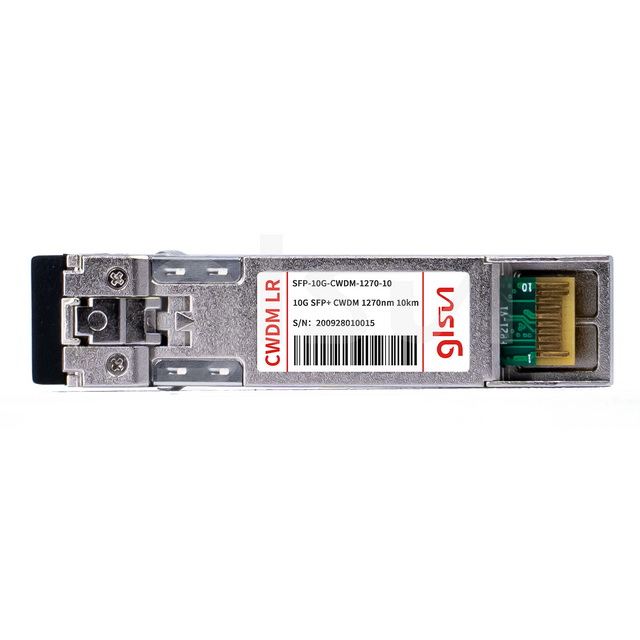

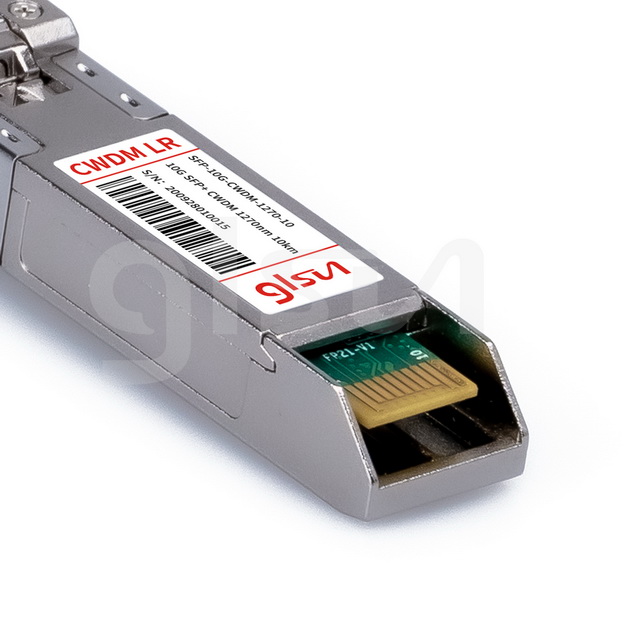

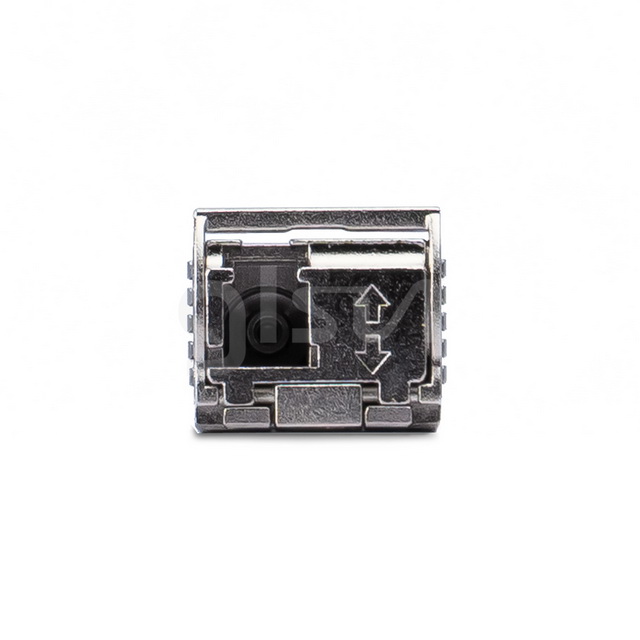

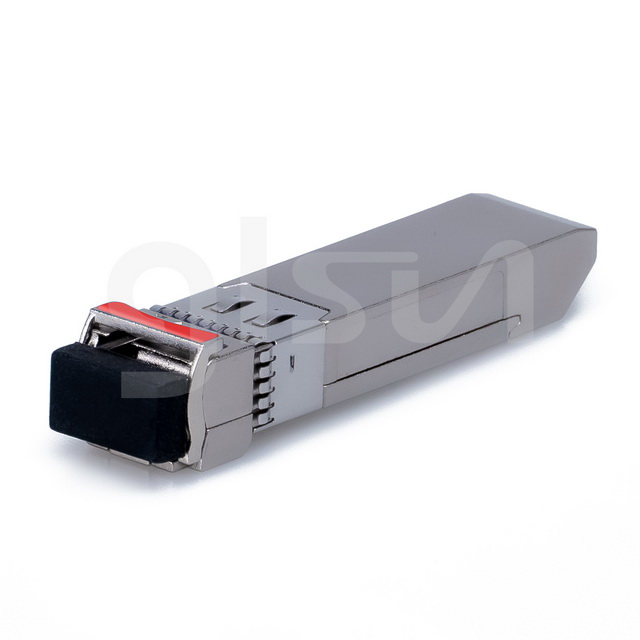

GLsun SFP-10G-CWDM-1270-10 Small Form Factor Pluggable (SFP+) transceivers are compatible with SFF-8431, SFF-8432, and support 10G Ethernet LR and 10G Fibre Channel. 10G CWDM SFP+ transceiver module is designed for use in 10G-Gigabit multi-rate links up to 10km of G.652. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Compatible | Cisco | Form Factor | SFP+ | ||
Max Data Rate | 10.3 Gbps | Wavelength | 1270nm | ||
Max Cable Distance | 10km on 9/125um | Connector | Duplex LC | ||
Transmitter Type | CWDM DFB | Extinction Ratio | 3.5dB | ||
Media | SMF | Power Consumption | <1.0W | ||
Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial) |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
