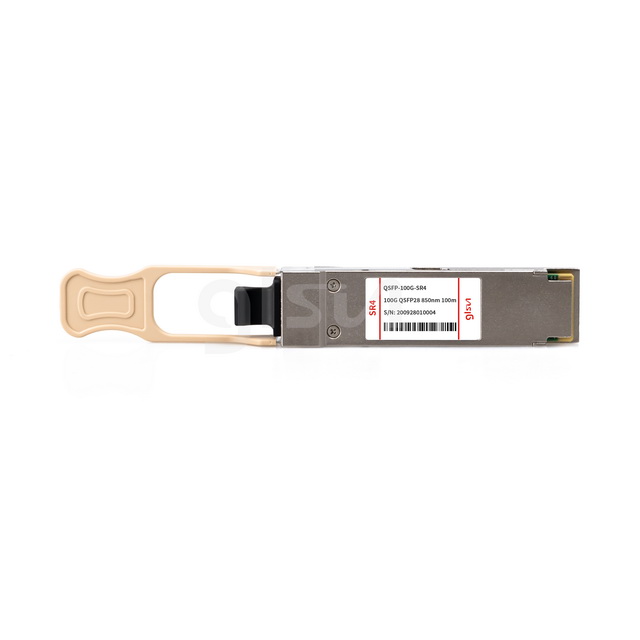

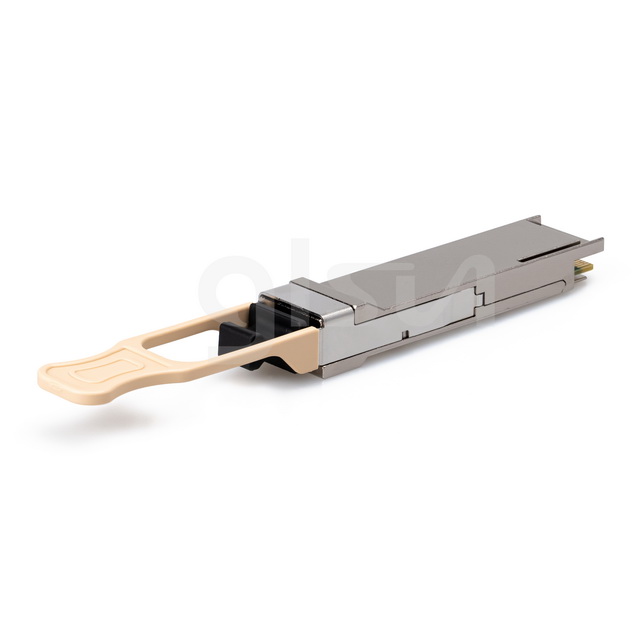

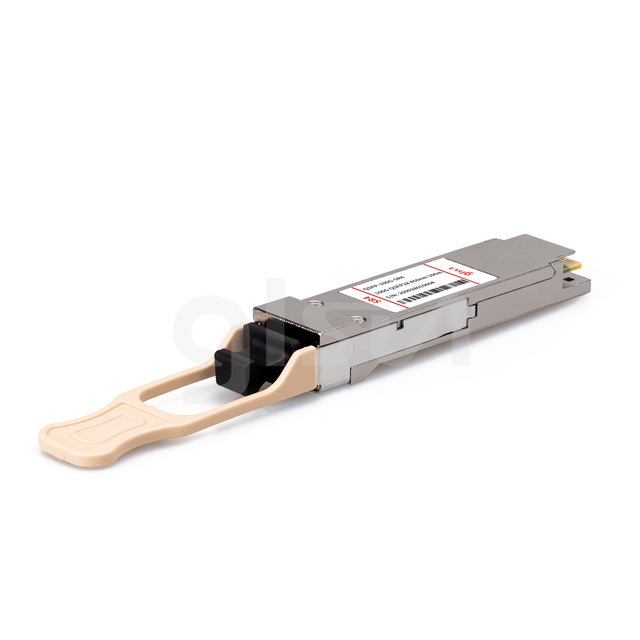

QSFP-100G-SR4-S Cisco Compatible, 100GBASE-SR4 QSFP28 MTP/MPO MMF 850nm 100m DDM Fiber Optical Transceiver Module

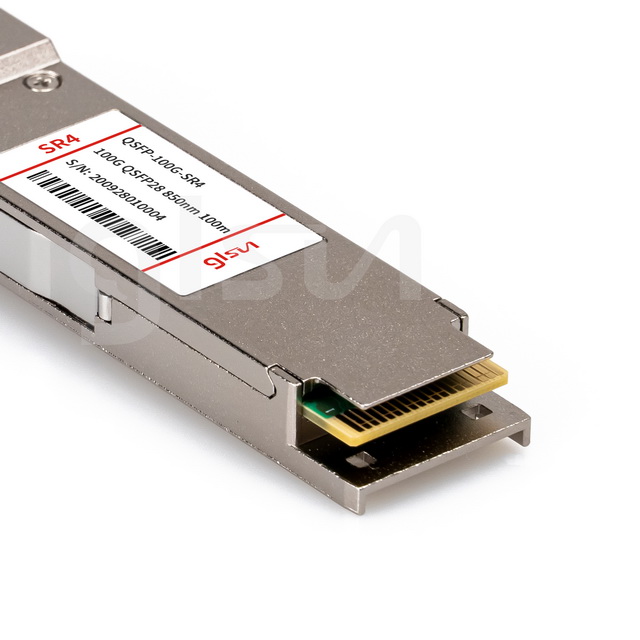

Cisco QSFP-100G-SR4-S Compatible QSFP28 Fiber Optical Transceiver is an integrated transceiver module containing a micro-optic component and semiconductor material, and can implement optical-electrical conversion and electrical-optical conversion. The module is designed as a four-channel, pluggable, parallel, QSFP28 transceiver for 100Gbps fiber-communication. Each channel can operate at 25Gbps up to 70m on OM3 MMF and 100m on OM4 MMF. And the operating wavelength is 850nm. The optical interface uses a 12 fiber MTP(MPO) connector, and the electrical interface uses a 38 contact edge type connector. This product is compliant to 100GBASE-SR4 of IEEE802.3bm standard and SFF-8436 specification, and provides reliable long life, high performance, and consistent service.

Feature
● Hot Pluggable QSFP28 form factor
● Supports 101.3Gb/s aggregate bit rate
● Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

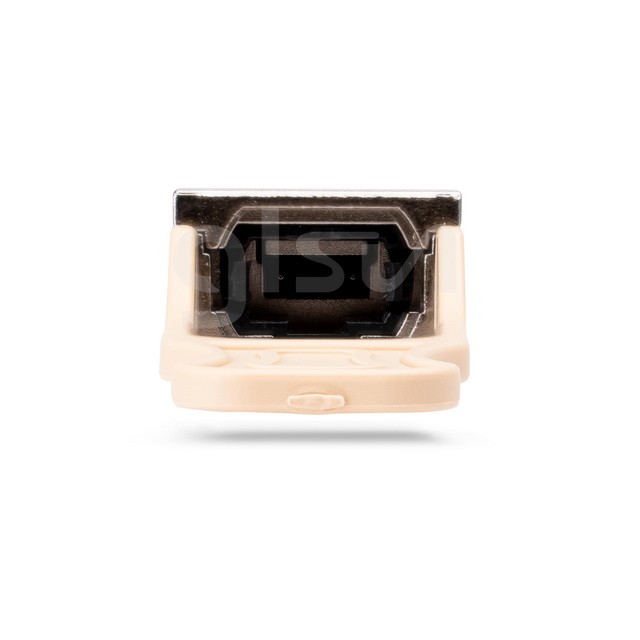

● Single MPO-12 receptacle
● Power dissipation: <2.5 W
● Single 3.3V power supply
● 4x25Gb/s 850nm VCSEL and PIN array
● 4x25G electrical interface (CAUI-4)
● Commercial case temperature range of 0°C to 70°C
● I2C management interface
● Class 1 Laser Products

Application
● 100GBASE-SR4 100G Ethernet

Standard
● Compliant with QSFP28 MSA
● Compliant to IEEE 802.3bm
● Compliant to SFF-8636
● Compliant with RoHS-6
