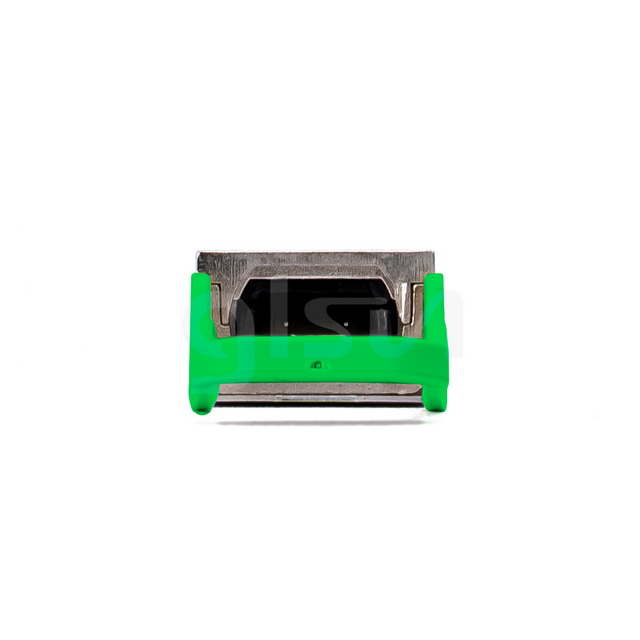

QSFP28-100G-CWDM4 Cisco Compatible, 100GBASE-CWDM4 QSFP28 SMF 1270nm to 1330nm 2km DOM Fiber Optical Transceiver Module
- Compatible
- Cisco
- Transceiver Type
- QSFP-100G-CWDM4 | 2km
QSFP28-100G-CWDM4-T02 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed, and passed on to four laser drivers, which control four CWDM with 1271, 1291, 1311, and 1331 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector. On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
| Compatible | Cisco | Form Factor | QSFP28 | ||
| Max Data Rate | 100Gbps | Wavelength | 1310nm | ||
| Max Cable Distance | 2km | Connector | Duplex LC | ||
| Transmitter Type | DFB CWDM | Extinction Ratio | 3.5dB | ||
| Media | SMF | Power Consumption | <3.5W | ||
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial) |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
