Why AI Networks Need Optical Isolators

With the rapid development of AI large language models, cloud computing, and data centers, the optical communication industry is accelerating into the 400G, 800G, and even 1.6T era. High-speed transmission imposes much stricter requirements on the stability of optical devices, loss control, and overall system reliability. In this context, a seemingly compact passive optical component — the high-performance optical isolator — is playing an increasingly critical role inside high-speed optical modules. It acts as a “one-way valve” in the optical path, safeguarding the stable operation of lasers and ensuring massive amounts of AI data are transmitted efficiently and error-free through optical fibers.

What Is an Optical Isolator and Why Is It So Important?
An Optical Isolator is a passive optical device based on the Faraday rotation effect. It allows light signals to pass in only one direction while strongly attenuating light propagating in the reverse direction.

Its core functions include:
· Preventing reflected light from returning to the laser
· Reducing system noise
· Improving laser stability
· Ensuring high-quality high-speed signal transmission

In high-speed optical modules, even minute reflection interference can lead to:
· Signal distortion
· Increased bit error rate
· Laser instability
· Overall module performance degradation

Therefore, high-performance optical isolators have evolved from optional components to essential key devices in high-speed optical module design.

AI Computing Power Boom: The Driving Force Behind High-Speed Optical Module Upgrades
The explosive growth of AI training and inference is reshaping data center network architectures. Especially in Spine-Leaf architectures, ultra-large GPU clusters, AI-specific switching networks, and hyperscale data centers, the demand for bandwidth and ultra-low latency has reached new heights. 400G optical modules have become mainstream, 800G is ramping up rapidly, and 1.6T modules are entering the introduction phase.

At the same time, optical modules face multiple technical challenges:
· Extremely limited internal space and significantly higher integration density
· Tighter link budgets — higher speeds are extremely sensitive to every 0.1 dB of loss
· Harsher operating environments due to high-density deployment, temperature fluctuations, and mechanical stress

In these scenarios, optical isolators must meet more demanding requirements:
· Lower Insertion Loss: Typically controlled within 0.3–0.5 dB to maximize precious link power budget.
· Higher Isolation: Single-stage >30 dB, dual-stage >45 dB or higher, to effectively suppress reflection noise in high-speed environments.
· Smaller Size and Higher Integration: To support the Co-Packaged Optics (CPO) trend and further miniaturization.
· Higher Consistency and Reliability: Ultra-large AI clusters demand exceptional batch-to-batch consistency and long-term stability.

GLSUN Optical Isolator Product Portfolio and Technical Capabilities
In response to the development trends in high-speed optical communications and AI infrastructure, Guilin GLSUN Science and Technology Group (GLSUN) has built a complete micro-optics product system covering single-channel, array, bare die, and customized solutions. GLSUN provides one-stop high-performance optical isolator solutions for global optical module manufacturers.

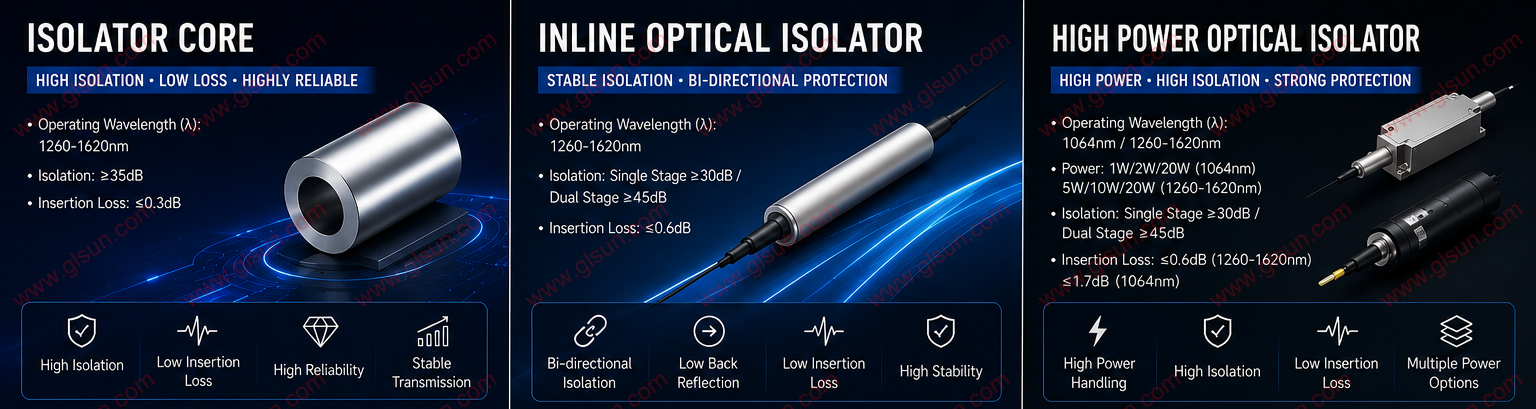

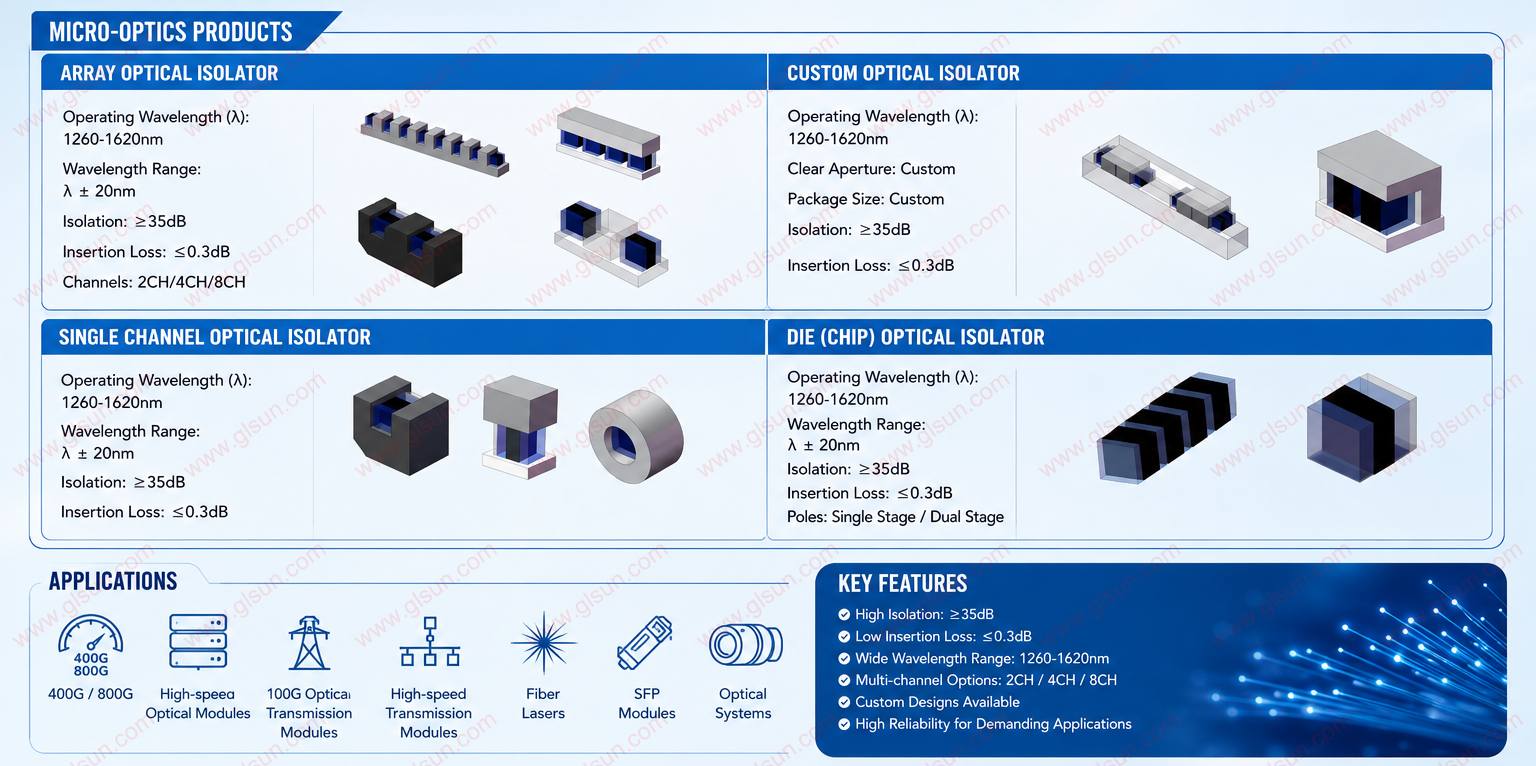

Main Product Series Include:
· Array Optical Isolators: Support 2CH, 4CH, 8CH and other channel configurations. They feature high integration, low insertion loss, and excellent channel-to-channel consistency, making them ideal for 400G SR8, 800G DR8, high-speed parallel optical modules, and AI data center interconnects.
· Single-Channel Optical Isolators: Mature and reliable solutions for various TOSA and laser packaging applications.
· Bare Die Optical Isolators: Ultra-compact designs that directly support silicon photonics integration and next-generation CPO packaging, enabling further module miniaturization.
· Custom Optical Isolators: Deep customization available based on specific wavelength, power, and size requirements.

GLSUN has already achieved:
· Mass production of 400G optical isolators
· Stable supply of 800G optical subassemblies
· Development and validation of 1.6T related technical solutions
· Parallel advancement of 3.2T optical solutions and CPO application R&D

Arrayization and Miniaturization: An Inevitable Trend for High-Speed Optical Modules
Traditional discrete optical isolators can no longer meet future demands. Array optical isolators, through precision micro-optical alignment and integration processes, enable multi-channel simultaneous isolation. This significantly reduces system complexity and cost while improving inter-channel consistency. GLSUN’s array products excel in insertion loss, isolation, and polarization-dependent loss (PDL), and are widely used in high-speed parallel modules and AI cluster interconnects.

Meanwhile, bare-die optical isolators provide critical support for advanced packaging technologies such as CPO, helping customers integrate optical engines more closely with ASICs, shortening signal paths, reducing power consumption, and increasing bandwidth density.

In the High-Speed Era, Stability Matters More Than Specifications Alone
For AI data centers, excellent parameter specifications are no longer sufficient. What truly determines long-term reliable system operation are batch consistency, temperature stability, automated manufacturing capability, and stringent quality control.

GLSUN has made substantial investments in manufacturing, including:
· A 10,000㎡ modern cleanroom facility (with Class 100, Class 1,000, and Class 10,000 clean areas)
· Highly automated production and testing systems
· Monthly production capacity exceeding 10KK (10 million pieces)
· Comprehensive QC full-inspection processes, real-time environmental monitoring, and automatic sorting systems

These capabilities ensure every optical isolator is delivered with stable and highly consistent quality, meeting the stringent requirements of ultra-large-scale AI deployments.

From 100G to 400G and 800G, and moving toward the upcoming 1.6T and 3.2T era, optical isolators are no longer merely auxiliary devices for “protecting lasers.” They have become critical foundational components that determine the stability and performance ceiling of high-speed optical communication systems. Against the backdrop of continued explosive growth in AI computing power, high-performance, highly consistent, miniaturized, and arrayed optical isolators are becoming essential pillars supporting the next generation of optical networks. GLSUN will continue to focus on innovation in high-speed optics and power-optics technologies, continuously optimizing product performance and manufacturing capabilities to provide more reliable and competitive optical connectivity solutions for global high-speed communication equipment vendors and AI infrastructure builders. In the face of the “high-speed + intelligent” future of optical communications, GLSUN is ready to collaborate with industry partners to jointly strengthen the foundation of optical interconnects in the AI era.
