GPON vs XG-PON vs XGS-PON

Passive Optical Network (PON) technology has become one of the mainstream technologies for Fiber-to-the-X (FTTx) network construction. As users' demand for high bandwidth continues to grow, especially with the popularization of high-traffic applications such as OTT video and 4K TV, operators have included 10G GPON technology in their schedules to meet users' urgent need for faster and more reliable network connections. need. GPON is generally divided into GPON, XG-PON and XGS-PON.

1. GPON

Gigabit Passive Optical Network (GPON) is an optical fiber transmission technology that uses a single optical fiber line to transmit data to achieve high-speed, high-bandwidth network connections. The basic principles of GPON involve light transmission and the use of optical splitters. In the GPON network, an optical fiber line connects multiple users and distributes signals to different end users through optical splitters to achieve data transmission.

The architecture of GPON includes optical line terminal (OLT) and optical network unit (ONU). The OLT is responsible for communicating with the ONU on the user side, and the ONU is responsible for communicating with the user equipment. This distributed structure enables the GPON system to support a large number of users and be widely used in different fields.

1.1 GPON Technical Specifications

Among the technical specifications of GPON, one of the most prominent features is its high bandwidth requirements. GPON is typically capable of providing transmission rates of 1.25 Gbps (downstream direction) and 2.5 Gbps (upstream direction). This high bandwidth makes GPON excellent in supporting high-traffic applications such as high-definition video and large-capacity file transfer.

In addition, GPON also has certain advantages in distance. Fiber optic transmission allows signal transmission distances to reach tens of kilometers, which enables GPON to meet a wide range of network topology needs.

Since the uplink rate of GPON is relatively low, the cost of ONU's sending components (such as lasers) is also low, so the total price of the equipment is low.

1.2 GPON Features

High bandwidth: GPON can provide transmission rates of up to 2.5 Gbps (uplink) and 1.25 Gbps (downlink), which enables it to meet users' needs for high-speed broadband connections.

Point-to-multipoint architecture: GPON uses a point-to-multipoint optical fiber transmission architecture to connect an optical line terminal (OLT) and multiple optical network units (ONU) through an optical fiber line. This distributed architecture allows multiple users to share the same optical fiber, improving network resource utilization.

Symmetric and asymmetric transmission: GPON supports symmetric and asymmetric transmission, that is, the uplink and downlink transmission rates can be different. This enables the network to better adapt to the needs of different users and applications.

ITU-T standards: The technical specifications of GPON are formulated by the Telecommunications Sector of the International Telecommunications (ITU-T) and are specifically defined in the G.984.x series of recommendations. This provides a unified standard for equipment from different manufacturers and increases the interoperability of equipment.

1.3 GPON Advantages and Limitations

One of the advantages of GPON is its relatively low cost. Fiber optic networks are often more cost-effective than traditional copper cable networks, especially in large-scale deployments. In addition, GPON supports symmetric and asymmetric transmission, making it suitable for different application scenarios.

However, GPON also has some limitations. Due to its limitations in transmission rate and bandwidth, the network may face bandwidth bottlenecks when user demands continue to increase. Upgrading the GPON system to meet higher requirements may face some technical and economic challenges.

1.4 GPON Application Scenarios

Home broadband network: GPON provides home users with high-speed and stable broadband connections, supporting high-definition video streaming, online games and other needs.

Enterprise network: In an enterprise environment, GPON can provide reliable communication infrastructure to meet the needs of enterprises for daily office work and large-scale data transmission.

Government and campus networks: GPON is also widely used in government agencies and school networks, meeting the needs of these institutions for high-bandwidth and high-stability networks.

2. 10G GPON

10G GPON (Gigabit Passive Optical Network) is a new generation of optical fiber access technology evolved from the existing GPON technology. It is designed to meet the rapid development of services and users' demand for higher bandwidth. Factors driving the evolution of technology to 10G GPON include the rapid development of services, user-side access technology innovation, and the demand for larger split ratios and longer transmission distances.

2.1 Main driving factors of 10G GPON

Business development needs: With the advent of the digital era, users have increasing demands for high bandwidth and high speeds. The popularity of high-traffic services such as video streaming, high-definition content, and virtual reality has driven the rapid growth of network bandwidth. Traditional GPON technology may face bottlenecks when facing the high bandwidth requirements of these services, so 10G GPON emerged as the times require to meet higher-speed transmission requirements.

User-side access technology innovation: With the development of emerging technologies such as 5G, Internet of Things, cloud services, etc., users' demand for higher bandwidth and lower latency has also increased. The introduction of 10G GPON enables the network to better adapt to the development of these innovative technologies and provide a more advanced user experience.

Larger split ratio and longer transmission distance: 10G GPON technology provides a larger split ratio, which means that more users can share the same optical fiber, improving network resource utilization. At the same time, it also supports longer transmission distances, allowing the network to cover a wider area and providing greater flexibility for long-distance transmission.

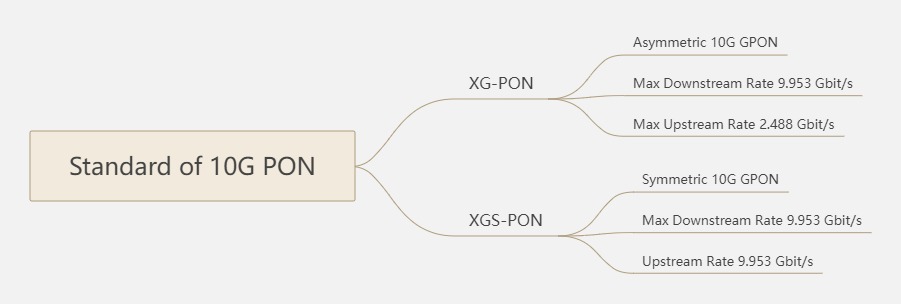

2.2 10G GPON standards

There are two main standards for 10G GPON, namely XG-PON and XGS-PON

XG-PON: Asymmetric 10G GPON, providing asymmetric transmission rates, with a maximum downlink line rate of 9.953 Gbit/s and a maximum uplink line rate of 2.488 Gbit/s. XG-PON meets the demand for high downlink speeds while having relatively low uplink speeds, making it suitable for most home broadband and business application scenarios.

XGS-PON: Symmetric 10G GPON, providing symmetrical transmission rates, with a maximum downstream line rate and uplink line rate of 9.953 Gbit/s. XGS-PON uses symmetrical transmission to better meet scenarios that require high uplink and downlink speeds, such as symmetric broadband services and enterprise applications.

3. XG-PON

3.1 Introduction to XG-PON

XG-PON, 10-Gigabit Passive Optical Network, is an upgraded version of GPON, designed to provide higher transmission rates and longer transmission distances. Compared with GPON, the transmission rate of XG-PON in the downlink and uplink directions is increased to 10 Gbps and 2.5 Gbps respectively, providing users with greater bandwidth support.

The technological evolution of XG-PON is mainly reflected in its improvement of optical modulation methods and innovation in multi-wavelength technology. These improvements enable XG-PON to better meet high-bandwidth applications and future network needs.

3.2 XG-PON Technical Specifications

Compared with GPON, XG-PON has significantly improved bandwidth and transmission rate. This makes XG-PON more suitable for application scenarios that require higher bandwidth, such as 4K/8K video streaming, virtual reality (VR) and augmented reality (AR) applications.

XG-PON also has relatively good distance performance and can cover a wider area, thus providing greater flexibility for long-distance transmission.

3.3 XG-PON Compatibility and Upgrade

XG-PON has certain compatibility with GPON, which means operators can gradually upgrade to XG-PON while retaining existing GPON infrastructure without requiring a complete equipment replacement. This smooth upgrade path helps operators adapt to market demands while maximizing investment protection.

Upgrading to XG-PON also provides users with a better service experience, especially when higher bandwidth is required. This upgrade is especially important to support large-scale, high-density user environments.

3.4 Future Development Trend of XG-PON

The development trend of XG-PON in the future optical fiber communication field mainly includes the demand for higher speed and adaptability to more business scenarios. As the digital age continues to develop, the demand for network bandwidth and performance will continue to increase, and XG-PON will continue to play a key role as a high-bandwidth solution.

In the future, XG-PON may be deeply integrated with other technologies, such as 5G, to provide more comprehensive and flexible solutions to meet the needs of the growing digital society.

4. XGS-PON

4.1 XGS-PON Overview

XGS-PON, the full name of 10-Gigabit Symmetric Passive Optical Network, is a technological innovation further developed on the basis of XG-PON. Compared with XG-PON, XGS-PON provides a symmetrical 10 Gbps transmission rate in both the downlink and uplink directions, which makes it perform well in application scenarios with high requirements for supporting symmetric data transmission.

The technological innovation of XGS-PON mainly focuses on its higher symmetric transmission rate and more flexible application of multi-wavelength technology.

4.2 XGS-PON Technological Innovation

A significant technological innovation of XGS-PON is the improvement in symmetrical transmission rate. By providing a symmetrical 10 Gbps transmission rate, XGS-PON can better support applications with higher symmetrical bandwidth requirements, such as high-quality video conferencing, cloud computing, etc.

The application of multi-wavelength technology is also an important innovation of XGS-PON. This technology allows multiple wavelengths to be used simultaneously, thereby enabling multiplexing on the fiber, increasing the capacity and flexibility of the network.

4.3 XGS-PON Multi-service Support

XGS-PON's symmetrical transmission rate and application of multi-wavelength technology make it more flexible in supporting multiple business scenarios. In addition to traditional home broadband and enterprise network applications, XGS-PON can better meet the needs of emerging application fields, such as the Internet of Things (IoT) and communication needs in the 5G era.

4.4 XGS-PON Security and Reliability

XGS-PON inherits the advantages of previous technologies in terms of data transmission security and network reliability. Optical fiber transmission itself has high security, and XGS-PON maintains high requirements for data security and network reliability while providing higher bandwidth.

The deployment of XGS-PON not only provides users with more efficient and flexible services, but also has long-term sustainability in meeting the needs of future digital society.
